Brake Hose Crimping Machine High Pressure Hydraulic Hose Crimping Tool P32 Crimper

  • Brake Hose Crimping Machine High Pressure Hydraulic Hose Crimping Tool P32 Crimper
  • Brake Hose Crimping Machine High Pressure Hydraulic Hose Crimping Tool P32 Crimper
  • Brake Hose Crimping Machine High Pressure Hydraulic Hose Crimping Tool P32 Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51L
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51L Brake Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 800*640*1300mm Weight 320Kg
High Light

Low Noise Brake Hose Crimping Machine

,

51L Brake Hose Crimping Machine

,

51L Hose Crimping Machine
Leave a Message
Product Description



BRAKE HOSE CRIMPING MACHINE MS-51L

DESCRIPTION



MS-51L brake hose crimping machine is suitable not only for car low pressure brake lines, but also for high pressure hydraulic hose in the excavator or other hydraulic machinery.



MAIN ADVANTAGES



1. Forged steel making the oil cylinder, high stability;

2. Multifucntion foot pedal, large production;

3. Free change from aemi-automatic to automatic mode;

4. Easy for daily maintenance.



TECHNICAL DATA



Model

MS-51L Brake Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

800 (mm)

Width

640 (mm)

Height

1300 (mm)

Weight

320 (KG)

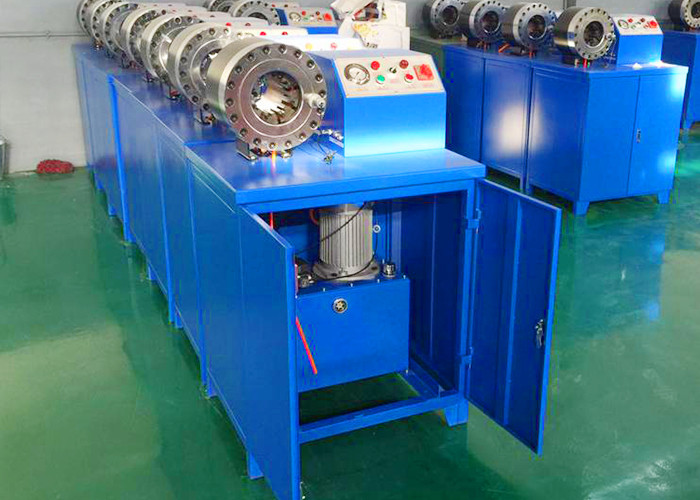

Brake Hose Crimping Machine High Pressure Hydraulic Hose Crimping Tool P32 Crimper 0



51 CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



OPTIONAL



- Quick Change Tool

- UC control;

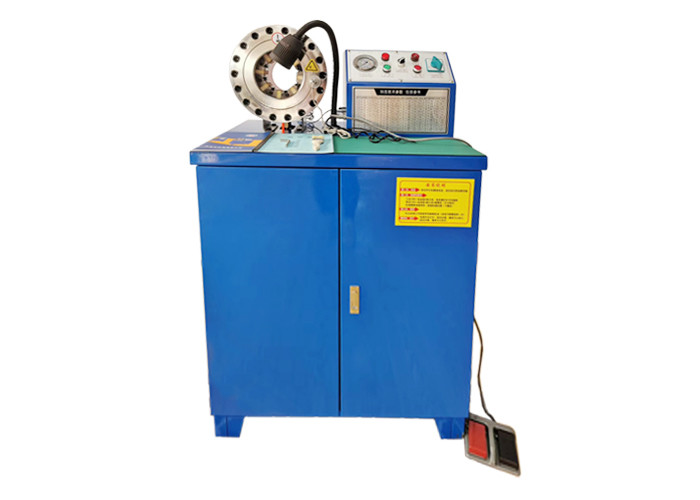

Brake Hose Crimping Machine High Pressure Hydraulic Hose Crimping Tool P32 Crimper 1



Brake Hose Crimping Machine High Pressure Hydraulic Hose Crimping Tool P32 Crimper 2



Brake Hose Crimping Machine High Pressure Hydraulic Hose Crimping Tool P32 Crimper 3
