Quick Speed mobile hydraulic crimper
,51KH mobile hydraulic crimper
,51KH portable hydraulic crimping machine

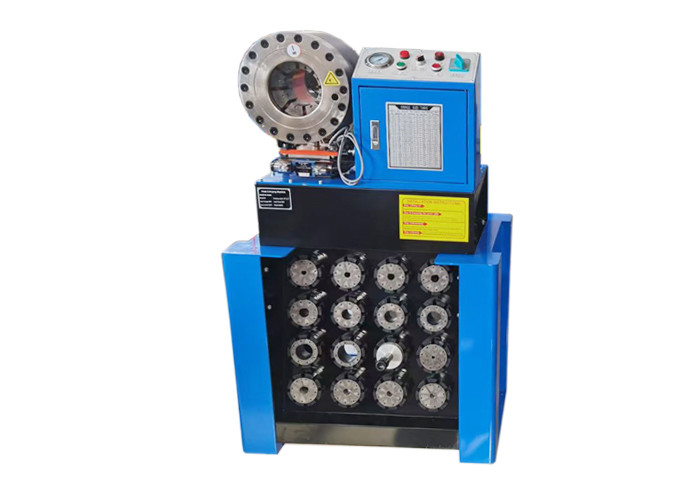

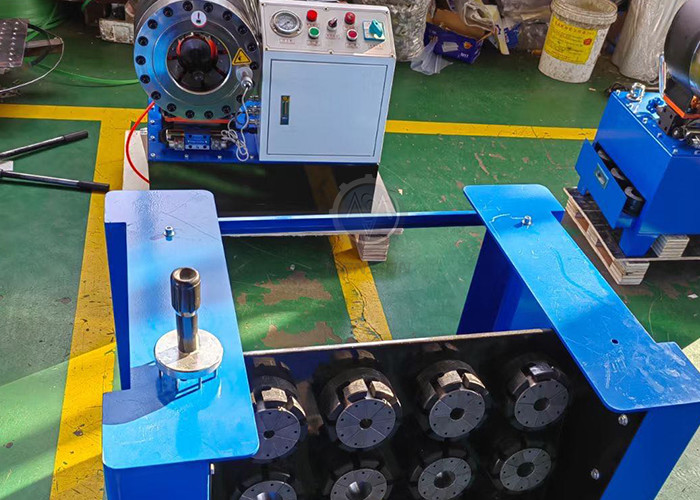

PORTABLE HYDRAULIC HOSE CRIMPER MS-51KH
DESCRIPTION
MS-51KH hose crimping machine is compact in strcuture, but powerful in criming capacity. With high quality piston pump, it can crimping big size hydraulic hose with low noise.
MAIN FEATURES
1. Accurate crimping with high precision dial;
2. High pressure but very safe;
3. Low maintenance cost;
4. Easy to learn.
TECHNICAL DATA
|
Model |
MS-51KH Portable Hydraulic Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
1520 (mm) |
|
Weight |
310 (KG) |
51 SERIES CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
-
