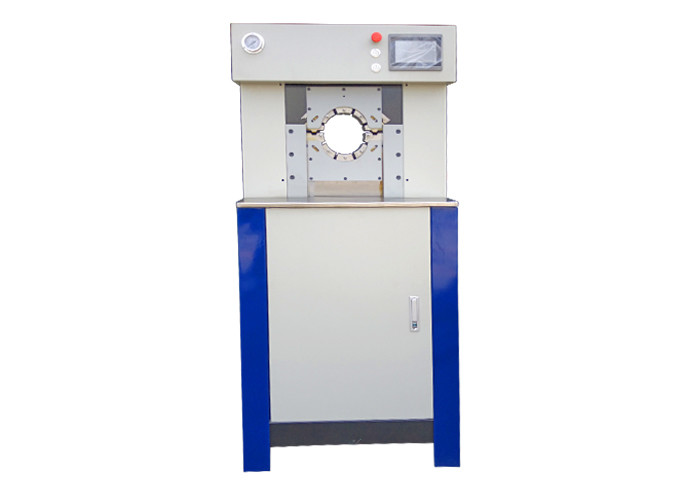

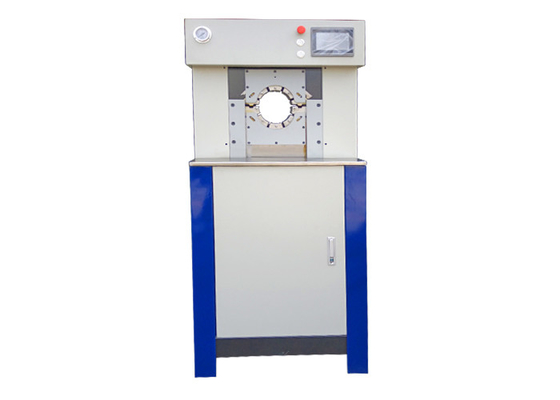

FOUR INCH SPIRALED HOSE PRESSING MACHINE MS-P180
DESCRIPTION
MS-P180 hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 4 inch.
MAIN FEATURES
1. Thin head, easy fed for bend fitting;
2. Big crimping power;
3. High accuracy.
TECHNICAL DATA
|
Model |
MS-P180 Hose Pressing Machine |
|
Crimping Range |
14 - 127 (mm) |
|
Crimping Force |
980 (T) |
|
Hose Size |
1/4 - 4 (inch) |
|
Max. Opening |
80 (mm) |
|
Die Sets |
27 |
|
Die Set Type |
P32 P180 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC |
|
Standard Voltage |
380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
780 (mm) |
|
Width |
1050 (mm) |
|
Height |
1650 (mm) |
|
Weight |
1520 (KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
P180 STANDARD DIE SETS
|
Die No. |
Crimping Range |
|
6* |
6 - 8mm |
|
8* |
8 - 10mm |
|
10* |
10 - 12mm |
|
12* |
12 - 14mm |
|
14 |
14 - 16mm |
|
16 |
16 - 19mm |
|
19 |
19 - 22mm |
|
22 |
22 - 26mm |
|
26 |
26 - 30mm |
|
30 |
30 - 34mm |
|
34 |
34 - 39mm |
|
39 |
39 - 45mm |
|
45 |
45 - 51mm |
|
51 |
51 - 57mm |
|
57 |
57 - 63mm |
|
63 |
63 - 69mm |
|
69 |
69 - 74mm |
| 74 | 74 - 80mm |
| 78 | 78 - 87mm |
| 84 | 84 - 92mm |
| 92 | 92 - 100mm |
| 100 | 100 - 108mm |
| 108 | 108 - 116mm |
| 116 | 116 - 126mm |
| 126 | 126 - 136mm |
| 136 | 136 - 146mm |
| 146 | 146 - 156mm |
| 156 | 156 - 166mm |
| 166 | 166 - 178mm |
| 178 | 178 - 190mm |
| 190 | 190 - 202mm |
-
