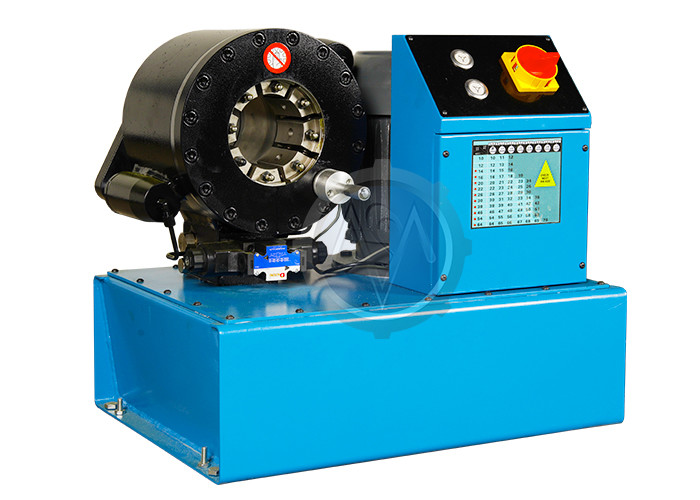

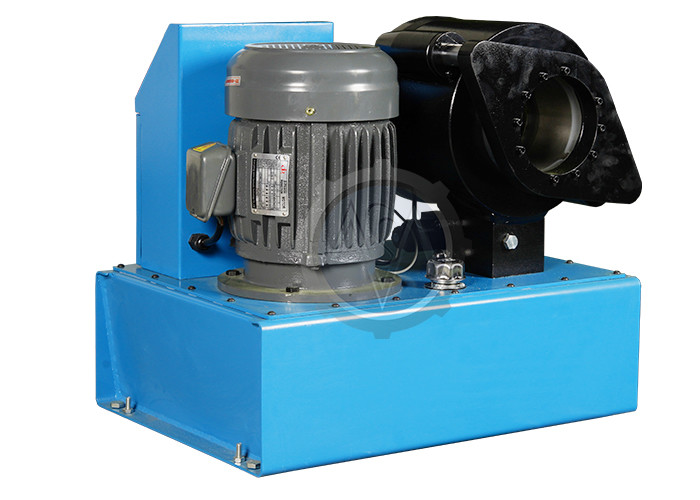

WORKSHOP INDUSTRIAL VEHICLE HOSE CRIMPING MACHINE MS-38
DESCRIPTION
MS-38 hose crimper is for hydraulic high pressure hose from 1/4'' to 2'' crimping, it comes with 10 die sets and a mold change fork, automatic lubricating of the whole hydraulic system makes it easy and low cost in regarding the maintenance.
MAIN FEATURES
► Good steel material and forging technology
► Compact structure with light weight
► Double ebel master die designing
► Die sets with high smoothness, protect galvanized surface of ferrule
TECHNICAL DATA
|
Model |
MS-38 Pressure Crimping Machinery |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) (1 - 4 layers) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
38 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) |
38MS HOSE MACHINE DIE SETS
|
Die No. |
Crimping (mm) |
Length (mm) |
|
6* |
6.0 - 8.0 |
55 |
|
8* |
8.0 - 10.0 |
55 |
|
10* |
10.0 - 12.0 |
55 |
|
12* |
12.0 - 14.0 |
55 |
|
14 |
14.0 - 16.0 |
60 |
|
16 |
16.0 - 20.0 |
60 |
|
20 |
20.0 - 22.0 |
60 |
|
22 |
22.0 - 26.0 |
60 |
|
26 |
26.0 - 30.0 |
60 |
|
30 |
30.0 - 38.0 |
70 |
|
38 |
38.0 - 46.0 |
70 |
|
46 |
46.0 - 54.0 |
80 |
|
54 |
54.0 - 64.0 |
80 |
|
64 |
64.0 - 69.0 |
80 |
|
69* |
69.0 - 76.0 |
90 |
NOTE
• Customized die sets are available with different size or shape
• Special voltage such as 110V, 208V, 240V, 415V are availbale
• Foot pedal is available to make the hands free

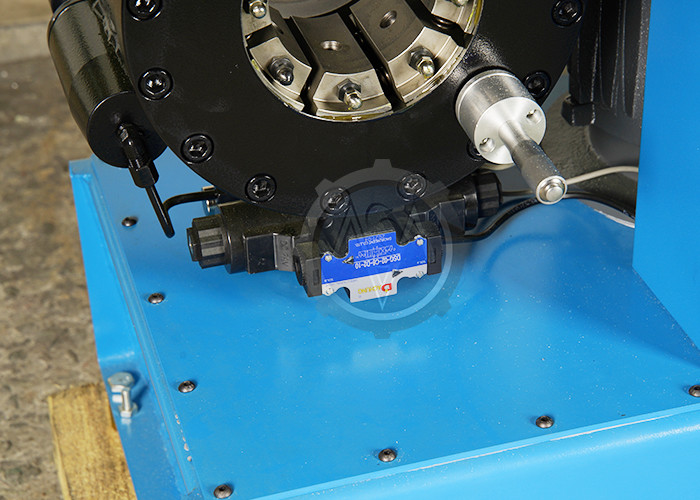

► HYDRAULIC PRESSING HEAD
One piece forged structure make the cylinder a long service time, double conical master die makes the
machine crimp with big force and high accuracy.
► HUMAN DESIGN OPERATE PANEL
Easy and convenient to operate with two buttons, more suitable for new user
► DIE SETS WITH HIGH HARDNESS
38MS is with 10 die sets with hardness of 59-63HRC, service time longer.
► CRIMPING REFERENCE SHEET
Each machine comes with a die set choosing reference sheet, use proper die sets will make thhe crimping better
► SAMPLE SHOW
MS-38 have been widely used in hydraulic hose assembly crimping, cable and wire rope pressing,
tube swaging, car automotive components jointing, etc.
WHAT TOOLS NEED FOR HOSE ASSEMBLY CRIMPING?
► A cutting machine for cutting the rubber hose to needed length. (Sometimes a cleaning machine
will be made for cleaning the hose inner part)
► A rubber layer stripping machine for skiving the out or inner rubber layer, so the hose can be well
connected with the ferrule and fitting stem.
► A crimping machine for jointing the hydraulic hose, hose fitting stem and hose ferrule together,
to get a hose assembly.
► A pressure test machine for teasting the pressure that the hose assembly can bear, so to confirm
if it is a quality products.
-
