Industrial Swage Hose Crimper Machine MS - 51 For Hose Repair Service

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name Hose Crimping Machine Application Production
System Pressure 31.5Mpa Power 3KW
Size 670*430*820mm Weight 260Kg
High Light

Swage Hose Crimper Machine

,

Blue Hose Crimper Machine

,

Swage Hose Crimping Machine

Leave a Message
Product Description

Industrial Swage Hose Crimper Machine MS - 51 For Hose Repair Service



HOSE CRIMPER SWAGE MACHINE MS-51


DESCRIPTION



MS-51 high pressure hose crimping machine is for workshop hose repair hose service. It has big opening and large power, capable crimping hose fitting from 1/8'' to 2'' with high tensile steel wire braided. It is designed and used in tough enviroment. Crimping with low noise.



MAIN FEATURES



► Good hardness hydraulic cylinder one piece design

► Reasonable operate panel, two operate mode with automatic crimping

► High accurate dial, prevent tapering of hose assembly

► Foot pedal is standard make hands free, improve the efficiency

► Lamp to help the user see clearly during dark light



TECHNICAL DATA



 Model

 MS-51 Cable Pressing Machine

 Crimping Range

 14 - 87(mm)

 Crimping Force

 500 (T)

 Hose Size

 1/4 - 2 (inch)

 Max. Opening

 30 (mm)

 Die Sets

 10

 Die Set Type

 51

 System Pressure

 31.5 (Mpa)

 Accuracy

 0.05 (mm)

 Control

 MS

 Standard Voltage

 220 (V) Mono - phase

 Motor Power

 3 (KW)

 Length

 670 (mm)

 Width

 430 (mm)

 Height

 820 (mm)

 Weight

 260 (KG)

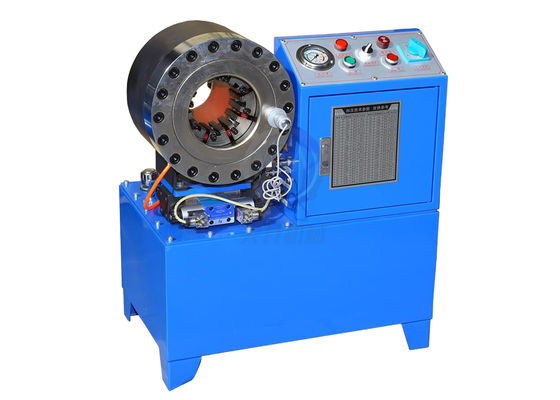

Industrial Swage Hose Crimper Machine MS - 51 For Hose Repair Service 0



HOSE CRIMPER 51 DIE SETS



Die No. #

Crimping Range

Length

6*

6 ... 8mm

35mm

8*

... 10mm

35mm

10*

10 ... 12mm

35mm

12*

12 ... 15mm

35mm

15

15 ... 19mm

60mm

19

19 ... 23mm

60mm

23

23 ... 26mm

60mm

26

26...31mm

60mm

31

31 ... 36mm

70mm

36

36 ... 41mm

70mm

41

41 ... 47mm

70mm

47

47 ... 55mm

80mm

55

55 ... 63mm

80mm

63

63 ... 69mm

80mm

69*

69 ... 76mm

90mm



NOTE



• " * " for non standard mold

• Customized molds are available

• Special voltage 110V, 208V, 240V, 415V are availbale



OPTIONAL



• Quick Change Tool

• Quick Change Die Set Rack
