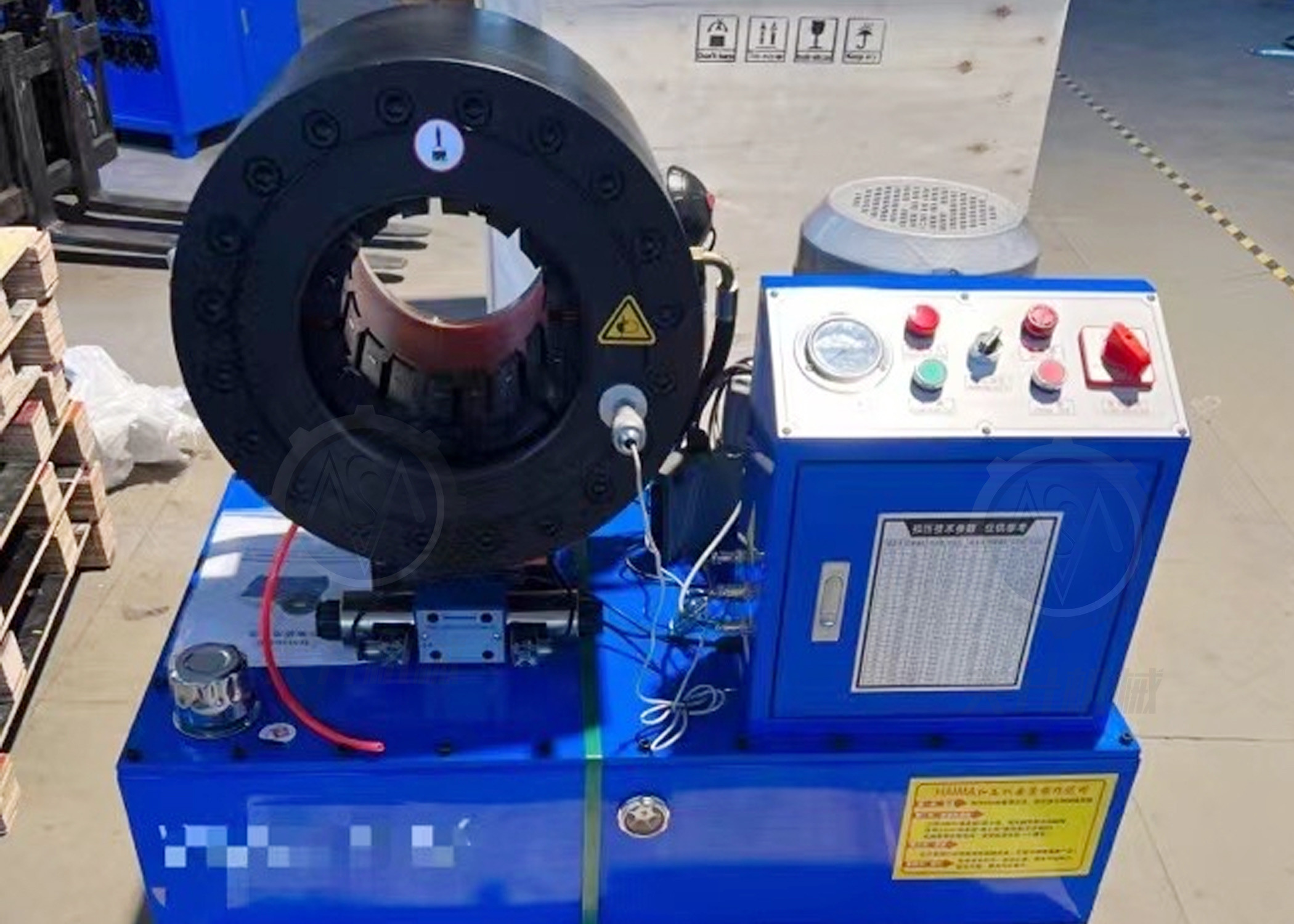

Hydraulic Hose Swaging Machine Pipe Press Machine Hyd Hose Crimping Tool

  • Hydraulic Hose Swaging Machine Pipe Press Machine Hyd Hose Crimping Tool
  • Hydraulic Hose Swaging Machine Pipe Press Machine Hyd Hose Crimping Tool
  • Hydraulic Hose Swaging Machine Pipe Press Machine Hyd Hose Crimping Tool
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-S102
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 187mm Hose Size 1/4 - 4inch
Die Sets 16+1 Color Blue
Max. Opening 45mm Crimping Force 980T
System Pressure 31.5Mpa Power 7.5KW
Size 850*530*980mm Weight 510Kg
High Light

102mm Hydraulic Hose Swaging Machine

,

CE Hydraulic Hose Swaging Machine

,

Blue Hydraulic Hose Swager
Leave a Message
Product Description

102mm Hydraulic Hose Swaging Machine S102 For Industrial Large Pipe Press



HYDRAULIC HOSE CRIMPING MACHINE MS-S102

DESCRIPTION


MS-S102 hose crimper is designed specially for large diameter hydraulic hose. It is capable of pressing high pressure rubber hose from 1/4 inch to 4 inch (102mm) inner diameter.

MAIN FEATURES


► Automatic crimping, high efficiency
► Wide hose swage range
► Compact structure


TECHNICAL DATA



Model

MS-S102 Hydraulic Hose Crimping Machine

Crimping Range

14 - 187 (mm)

Crimping Force

980 (T)

Hose Size

1/4 - 4 (inch)

Max. Opening

45 (mm)

Die Sets

16 + 1

Die Set Type

S102

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

380 (V)

Motor Power

7.5 (KW)

Length

850 (mm)

Width

530 (mm)

Height

980 (mm)

Weight

510 (KG)

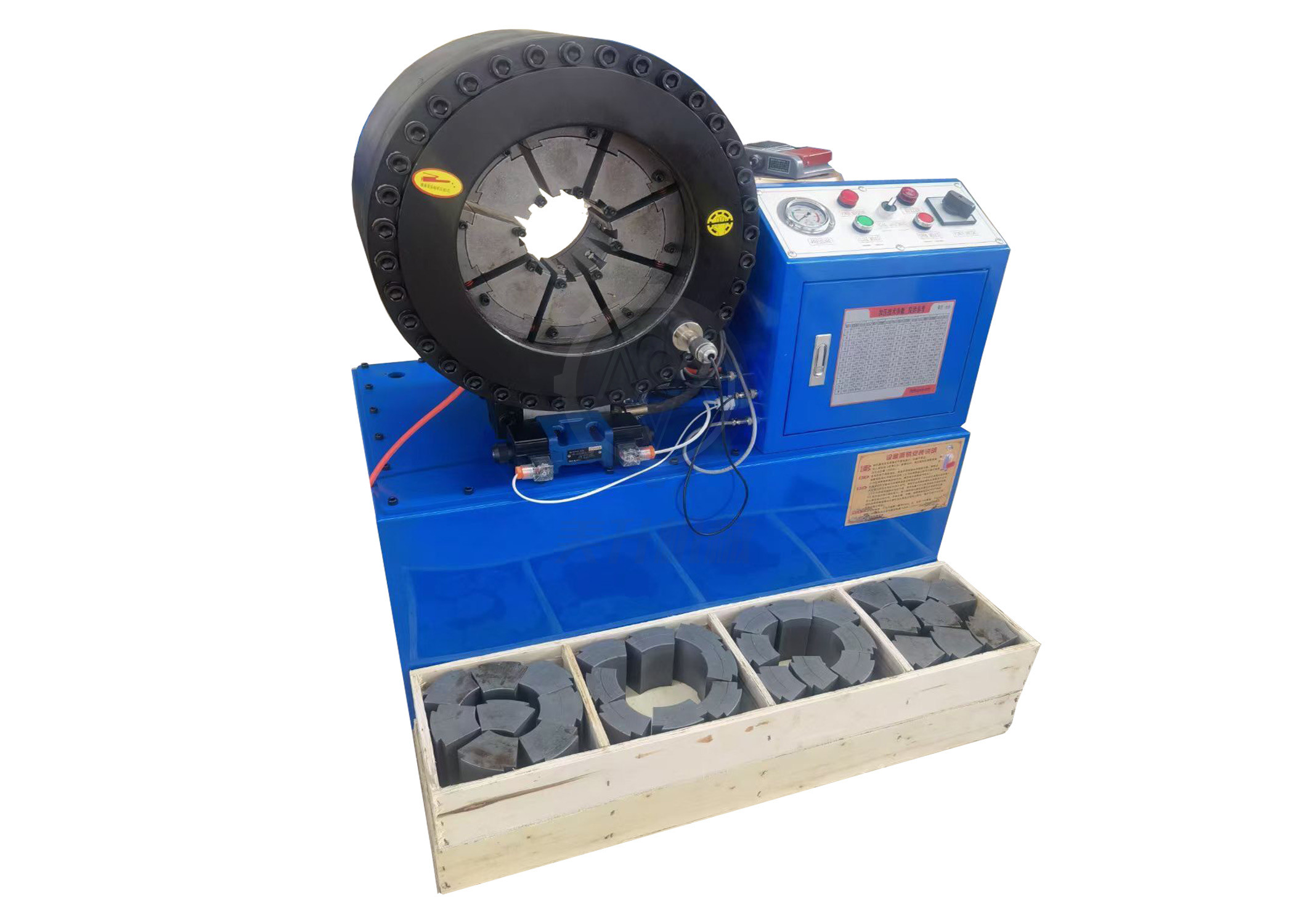

Hydraulic Hose Swaging Machine Pipe Press Machine Hyd Hose Crimping Tool 0

S102 CRIMPING MACHINE DIE SETS



Die No.

Crimping (mm)

 Length (mm)

6*

6.0 - 8.0

 55

8*

8.0 - 10.0

 55

10*

10.0 - 12.0

 55

12

12.0 - 15.0

 55

15

15.0 - 19.0

 55

19

19.0 - 23.0

 55

23

23.0 - 26.0

 55

26

26.0 - 31.0

 55

31

31.0-  36.0

 55

36

36.0 - 41.0

 75

41

41.0 - 47.0

 75

47

47.0 - 55.0

 90

55

55.0 - 63.0

 90

63

63.0 - 75.0

 100

75

75.0 - 87.0

 110
87 87.0 - 100.0 110
100 100.0 - 115.0 120
115 115.0 - 130.0 120
130 130.0 - 145.0 120


NOTE


• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
