Flexibility Hydraulic Pipe Crimping Machine Hydraulic Hose Crimper Press

  • Flexibility Hydraulic Pipe Crimping Machine Hydraulic Hose Crimper Press
  • Flexibility Hydraulic Pipe Crimping Machine Hydraulic Hose Crimper Press
  • Flexibility Hydraulic Pipe Crimping Machine Hydraulic Hose Crimper Press
  • Flexibility Hydraulic Pipe Crimping Machine Hydraulic Hose Crimper Press
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-N51KH
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name N51KH Hydraulic Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 670*430*1520mm Weight 310Kg
Highlight

Flexibility Hydraulic Pipe Crimping Machine

,

Numerical Control Pressing Hydraulic Pipe Crimper

,

Blue Hydraulic Pipe Crimping Machine
Leave a Message
Product Description

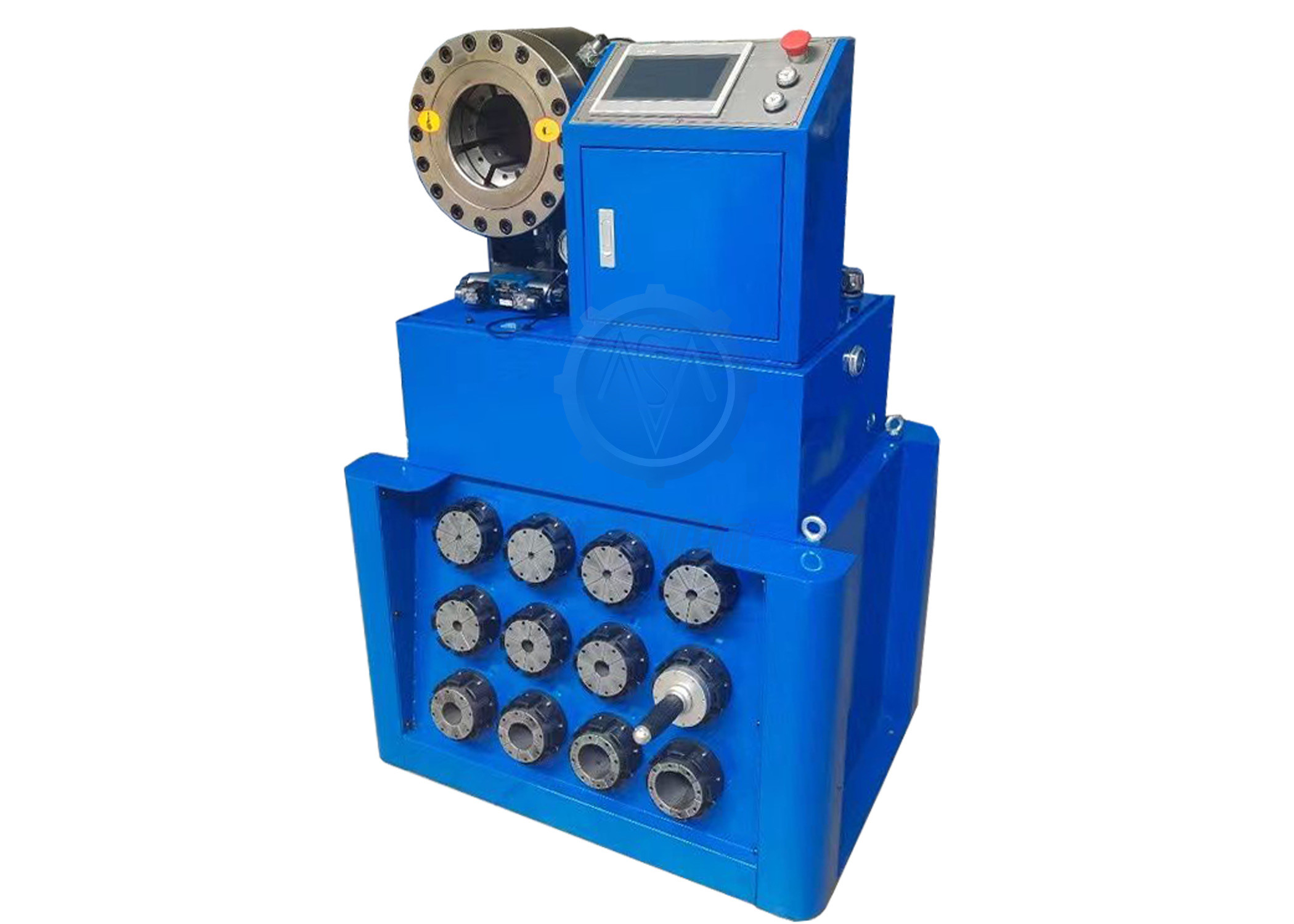

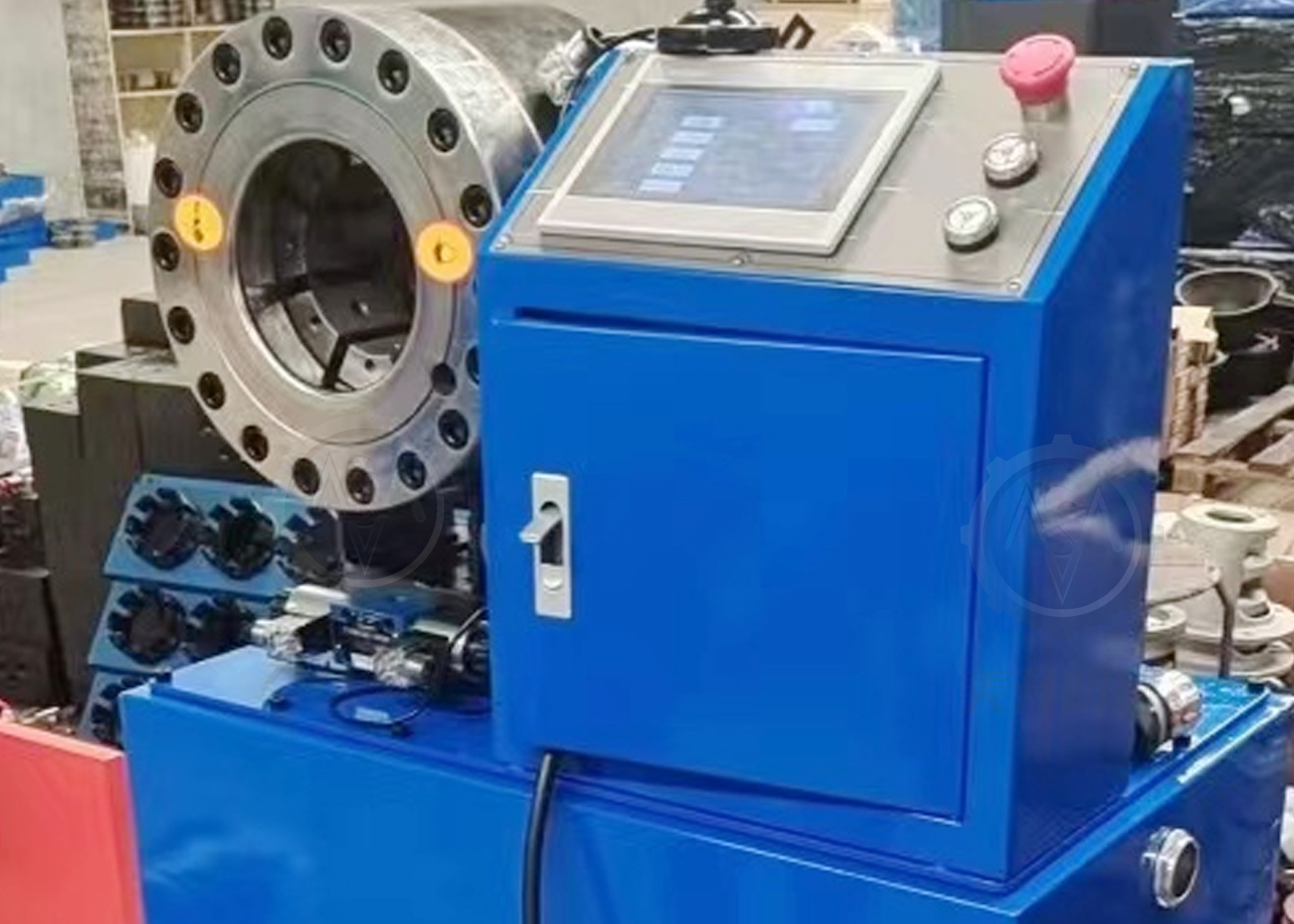

HYDRAULIC HOSE CRIMPING MACHINE MS-N51KH

DESCRIPTION



MS-N51KH hose crimper machine is controlled by micro-computer. It has high accuracy and high stability. Standard die sets are 10 sets with crimping range from 15mm to 87mm. Customized die sets makes a larger crimping range and other material pressing possibility, like steel tube reducing work, wire rope pressing and automotive brake lines making available.



MAIN FEATURES



1. Intelligent CNC control, high stability;

2. Large opening;

3. Good human confortable design;

4. Quick change for die sets.



TECHNICAL DATA



Model

MS-N51KH Crimping Hose Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

UC

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG)



Flexibility Hydraulic Pipe Crimping Machine Hydraulic Hose Crimper Press 0

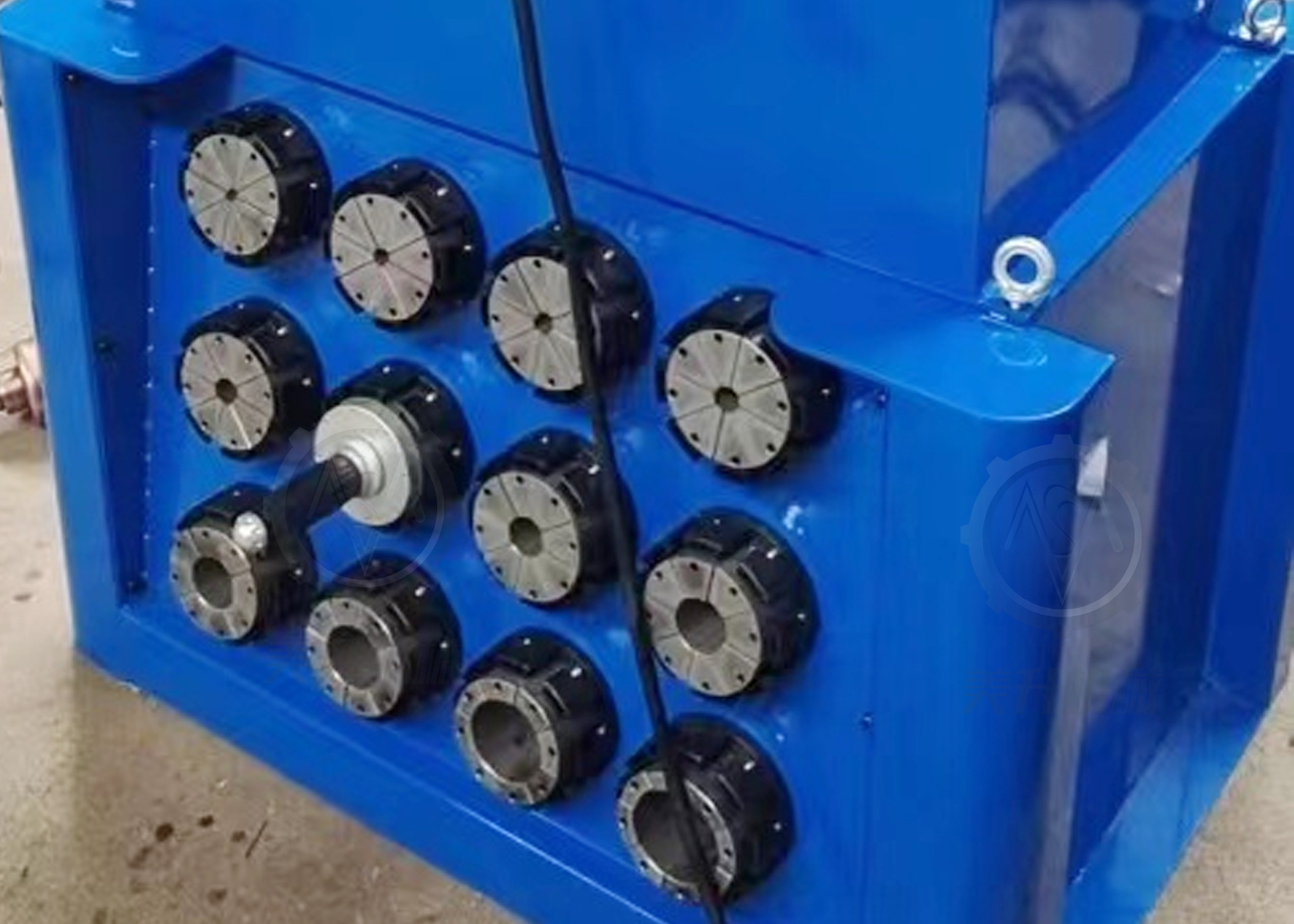

51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
