2 Inch Air Conditioner Hose Swaging Machine Tractor Hydraulic Hose Crimper

  • 2 Inch Air Conditioner Hose Swaging Machine Tractor Hydraulic Hose Crimper
  • 2 Inch Air Conditioner Hose Swaging Machine Tractor Hydraulic Hose Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E38
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Accuracy 0.01mm
Hydraulic Pump 5L Voltage 380V 50HZ
Power 3KW Size 630*450*600mm
Net Weight 200Kg Gross Weight 220Kg
Highlight

2'' Hose Swaging Machine

,

Air Conditioner Hose Swaging Machine

,

Rubber Pipe Hose Swaging Machine
Leave a Message
Product Description

2 Inch Air Conditioner Hose Swaging Machine E38 With High Precision For Rubber Pipe



HYDRAULIC HOSE SWAGING MACHINE MS-E38

DESCRIPTION



MS-E38 hose crimper is ideal choice for single production of hydraulic rubber hose assembly making. With unique desging hydraulic cylinder, it can works with high precision and quick speed. The compact structure makes it be able to be placed on any platform, which will be more convenient for the users.



MAIN FEATURES



1. High accuracy with precise dial;

2. Fast crimping, large production;

3. Wide crimping range for rubber hose;

4. Special die sets is available.



TECHNICAL DATA



Model

MS-E38 Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch) 4SH

Max. Opening

31 (mm)

Die Sets

10

Die Set Type

38

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

380 (V) 50HZ (3 - Phase)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)
Hydraulic Oil 50 (L)
Warranty 13 (Months)

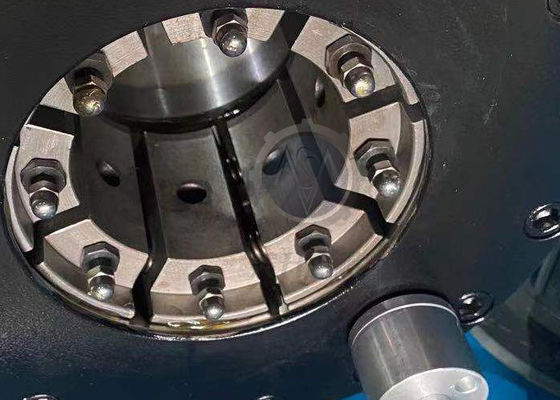

2 Inch Air Conditioner Hose Swaging Machine Tractor Hydraulic Hose Crimper 0



38 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 14mm

 35

14

14 - 16mm

 60

16

16 - 20mm

 60

20

20 - 22mm

 60

22

22 - 26mm

 60

26

26 - 30mm

 70

30

30 - 38mm

 70

38

38 - 46mm

 70

46

46 - 54mm

 80

54

54 - 64mm

 80

64

64 - 69mm

 80

69*

69 - 76mm

 100



NOTE



1) Customized die sets are available with different size or shape;

2) Special voltage such as 110V, 208V, 220V, 240V, 415V (60HZ) are availbale;

3) Foot pedal is available to make the hands free;

4) * for non standard die sets.



2 Inch Air Conditioner Hose Swaging Machine Tractor Hydraulic Hose Crimper 1
