For Workshop Hydraulic Cable Pressing Machine DX69 With Crimping Range 6 - 51mm

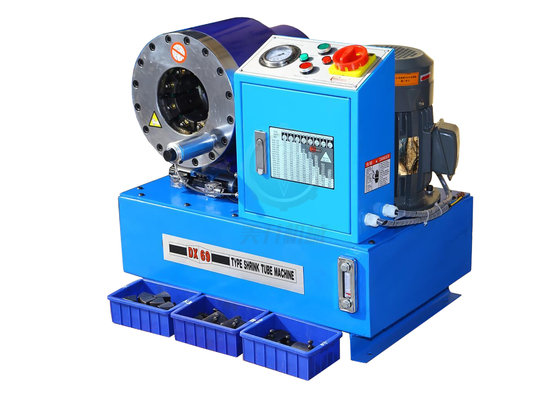

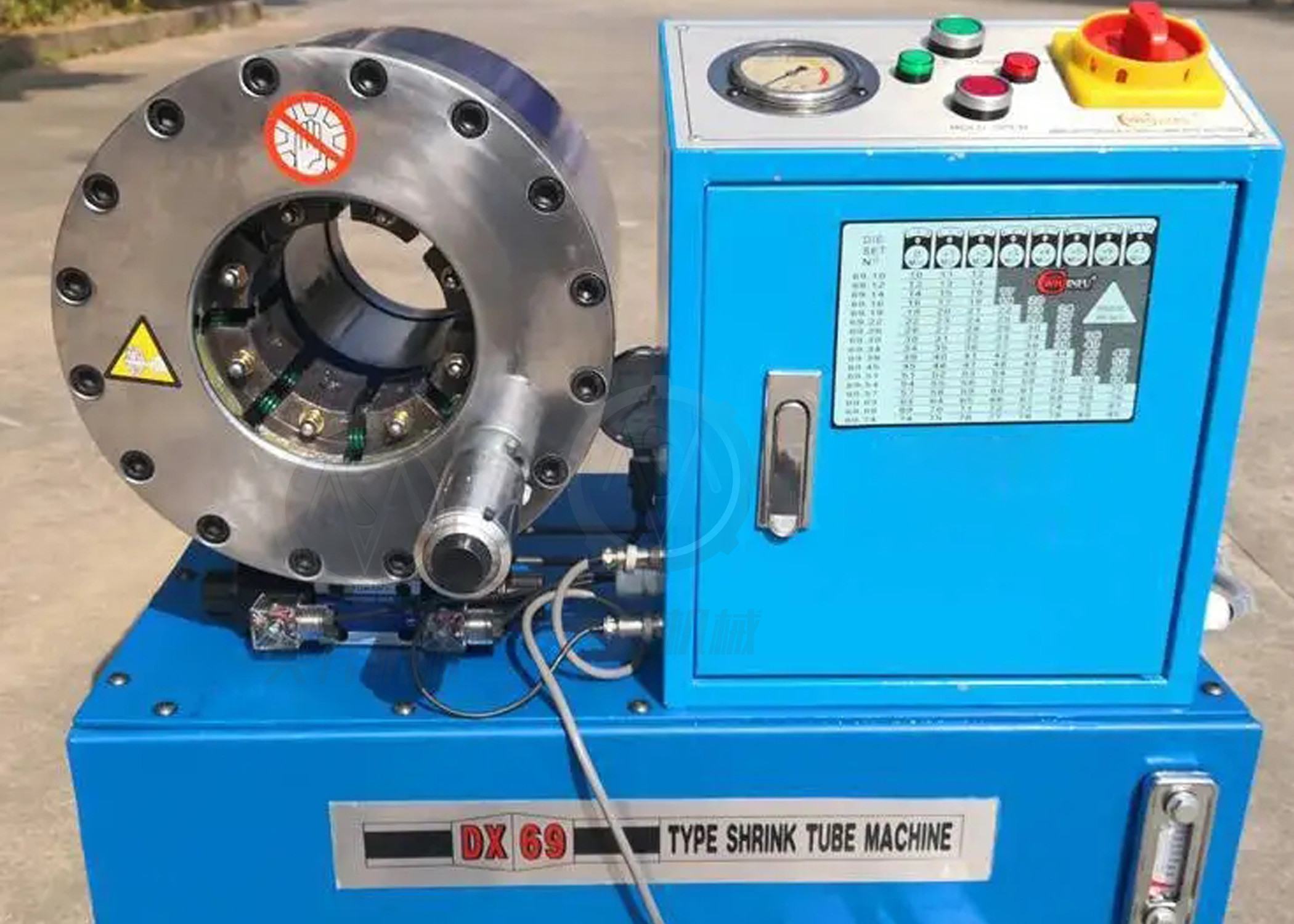

HYDRAULIC CABLE CRIMPING PRESS MACHINE MS - DX69
DESCRIPTION
MS-DX69 hydraulic hose crimper machine is a advanced mechanical control model, it is equiped with famous spares which will enable the machine work with high stability and accuracy. The cylinder can close and open with quick speed, to make the crimper a high efficiency and multifucntional for many material pressing and jointing.
FEATURES
1. High technology control system;
2. Good quality spare parts with famous brand;
3. Unique and advanced hydraulic cylinder;
4. Die sets for crimping with high hardness.
TECHNICAL DATA
|
Model |
DX - 69 Crimper Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) 4 Layers |
|
Max. Opening |
25 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
69 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) / 4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
560 (mm) |
|
Weight |
190 (KG) |
69 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 14 mm |
35 |
|
14 |
14 - 16 mm |
60 |
|
16 |
16 - 20 mm |
60 |
|
20 |
20 - 22 mm |
60 |
|
22 |
22 - 26 mm |
60 |
|
26 |
26 - 30 mm |
70 |
|
30 |
30 - 38 mm |
70 |
|
38 |
38 - 46 mm |
70 |
|
46 |
46 - 54 mm |
80 |
|
54 |
54 - 64 mm |
80 |
|
64 |
64 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
NOTE
1) Customized die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) * for non standard die sets;
4) Single phase and three phase can be made on request.
DELIVERY STANDARD
1) Hose Crimping Machine
2) Foot Pedal;
3) 10 Die Sets;
4) Operation Manual;
5) Consumable Accessories.
OPTIONS
1) Quick Change Tool;
2) Quick Change Die Set Rack;
3) UC Control;
-
