4 Inch Industrial Hydraulic Pipe Crimping Machine Hydraulic Pipe Clamp Pressing Machine

  • 4 Inch Industrial Hydraulic Pipe Crimping Machine Hydraulic Pipe Clamp Pressing Machine
  • 4 Inch Industrial Hydraulic Pipe Crimping Machine Hydraulic Pipe Clamp Pressing Machine
  • 4 Inch Industrial Hydraulic Pipe Crimping Machine Hydraulic Pipe Clamp Pressing Machine
  • 4 Inch Industrial Hydraulic Pipe Crimping Machine Hydraulic Pipe Clamp Pressing Machine
  • 4 Inch Industrial Hydraulic Pipe Crimping Machine Hydraulic Pipe Clamp Pressing Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-S102
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 183mm Hose Size 1/4-4inch
Die Sets 15 Color Blue
Max. Opening 30mm Crimping Force 1500T
Product Name MS-S102 Hose Crimping Machine Application Production
System Pressure 31.5Mpa Power 4KW
Size 1000*600*1050mm Weight 500Kg
Highlight

Industrial Hydraulic Pipe Crimping Machine

,

4'' Hydraulic Pipe Crimping Machine

,

4 Inch Hydraulic Pipe Crimper
Leave a Message
Product Description

4 Inch Industrial Hydraulic Pipe Crimping Machine S102 For Hose 102mm 6 Layers



HYDRAULIC HOSE CRIMPING MACHINE MS - S102

DESCRIPTION



MS-S102 hose crimper machine is designed for industrial and hydraulic hose from 1/4'' up to 4'' with four to six steel wire braided, thanks to its large opening and big powerful crimping force. The machine offered with 14 sets of standard dies and 1 set adapter dies. S102 can either press small hose assemblies 6mm (1/4'') and press bigger hose 102mm (4'') for a wide hose making workshop.



MAIN FEATURES



1. Hydraulic pressure show;

2. Accurate crimping size control;

3. Die sets are with high hardness;

4. Wide crimping range.



TECHNICAL DATA



Model

MS - S102 Hose Crimping Machine

Crimping Range

14 - 183 (mm)

Crimping Force

1500 (T)

Hose Size

1/4 - 4 (inch)

Max. Opening

30 (mm)

Die Sets

14 + 1

Die Set Type

102

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

4 (KW)

Length

1000 (mm)

Width

600 (mm)

Height

1050 (mm)

Weight

500 (KG)



4 Inch Industrial Hydraulic Pipe Crimping Machine Hydraulic Pipe Clamp Pressing Machine 0

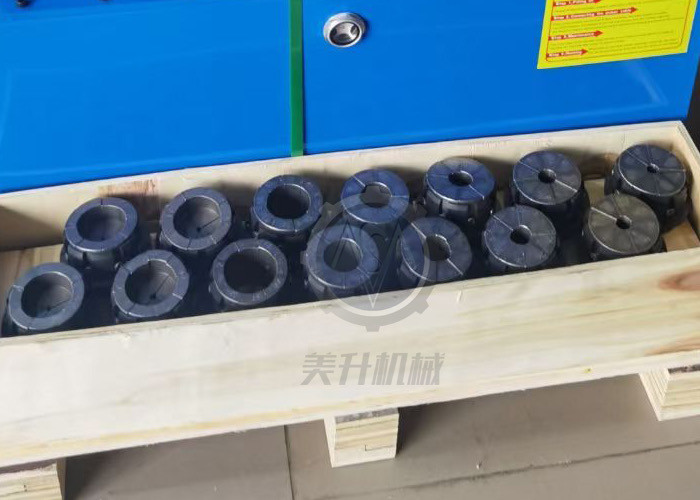

102 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 75 mm

 80
75 75 - 105 mm 100
105 105 - 116 mm 120
116 116 - 135 mm 120

135

135 - 148 mm

 120



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



OPTIONAL



- Quick Change Tool

- Die Set Rack;



4 Inch Industrial Hydraulic Pipe Crimping Machine Hydraulic Pipe Clamp Pressing Machine 1
