4 Inch 102mm High Pressure Hose Crimper S102 For Hydraulic Pipe Pressing

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-S102
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 187mm Hose Size 1/4 - 4inch
Die Sets 16+1 Color Blue
Max. Opening 30mm Crimping Force 1500T
Product Name S102 AC Hose Crimping Machine Application Production
System Pressure 31.5Mpa Power 3KW
Size 850*530*980mm Weight 500Kg
High Light

4 Inch High Pressure Hose Crimper

,

102mm High Pressure Hose Crimper

,

102mm Hydraulic Hose Crimper

Leave a Message
Product Description





HYDRAULIC PRESSURE HOSE CRIMPING MACHINE MS - S102


DESCRIPTION



MS-S102 hydraulic pipe pressing machine is a big size hose crimper which is suited for industrial and hydraulic hose up to 4 inch (102mm) 6 layers assembly making. With adapter dies, it can crimp small hose 1/4 inch size. The crimping size is controlled by a high precise micrometer to enable the operator a beautiful effect.



MAIN ADVANTAGES



1. For hose from 1/4'' to 4'';

2. Large pressing force;

3. Ergonomic design;

4. Quality oil pump.



TECHNICAL DATA



Model

MS-S102 Hose Crimping Machine

Crimping Range

14 - 187 (mm)

Crimping Force

1500 (T)

Hose Size

1/4 - 4 (inch) 6 Layers

Max. Opening

30 (mm)

Die Sets

16 + 1

Die Set Type

51 + 102

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

4 (KW)

Length

850 (mm)

Width

530 (mm)

Height

980 (mm)

Weight

500 (KG)

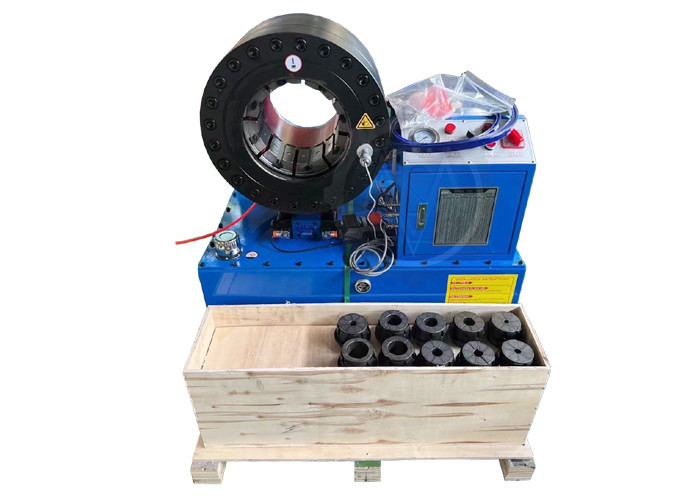

4 Inch 102mm High Pressure Hose Crimper S102 For Hydraulic Pipe Pressing 0

51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8 mm

35

8*

8 - 10 mm

35

10*

10 - 12 mm

35

12*

12 - 15 mm

35

15

15 - 19 mm

60

19

19 - 23 mm

60

23

23 - 26 mm

60

26

26 - 31 mm

60

31

31 - 36 mm

70

36

36 - 41 mm

70

41

41 - 47 mm

70

47

47 - 55 mm

80

55

55 - 63 mm

80

63

63 - 75 mm

80

75

75 - 87 mm

100
87 87 - 100 mm 120
100 100 - 115 mm 120
115 115 - 130 mm 120
130 130 - 147 mm 120



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



OPTIONAL



- Quick Change Tool

- UC control;
