Easy Operate Industrial Hydraulic Hose Crimping Machine 6mm To 51mm

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name MS-51 Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 670*430*820mm Weight 260Kg
High Light

6mm Hydraulic Hose Crimping Machine

,

51mm Hydraulic Hose Crimping Machine

,

Easy Operate Hydraulic Hose Crimping Machine

Leave a Message
Product Description

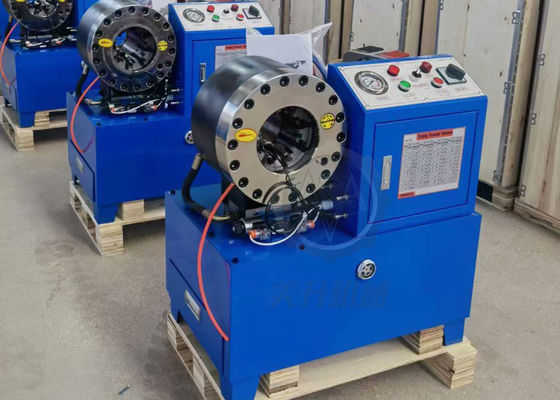

CRIMPING MACHINE FOR INDUSTRIAL HOSE MS-51


DESCRIPTION



MS-51 hydraulic high and low pressure hose crimping machine is designed for high pressure and low pressure hose assembly making. It is with 10 standard die sets, each die sets can press different hose size. Crimping size for standard die sets is from 15mm to 63mm, this crimping range can be bigger with customized die sets, to enable the crimper press other kinds hose and pipes.



MAIN FEATURES



► Automatic crimping for hose assembly;

► Reliability and safty pressing tool;

► Accuracy and efficiency;

► Multi-functional for many material jointing and crimping.



TECHNICAL DATA



Model

MS - 51 Hydraulic Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

820 (mm)

Weight

260 (KG)



Easy Operate Industrial Hydraulic Hose Crimping Machine 6mm To 51mm 0

51 HOSE CRIMPER DIE SETS



Die No.

Crimping (mm)

Length (mm)

6*

6 - 8 mm

35

8*

8 - 10 mm

35

10*

10 - 12 mm

35

12*

12 - 15 mm

35

15

15 - 19 mm

60

19

19 - 23 mm

60

23

23 - 26 mm

60

26

26 - 31 mm

60

31

31 - 36 mm

70

36

36 - 41 mm

70

41

41 - 47 mm

70

47

47 - 55 mm

80

55

55 - 63 mm

80

63

63 - 69 mm

80

69*

69 - 76 mm

90



NOTE



• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale



OPTIONAL



• Quick Change Tool

• Quick Change Die Set Rack

• UC Control
