MANUAL HYDRAULIC HOSE CRIMPING MACHINE MS-N51CG
DESCRIPTION

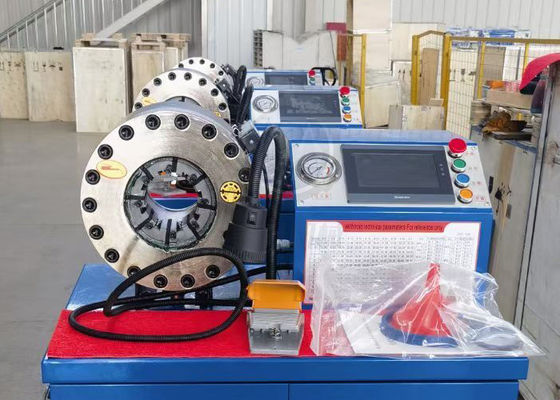

MS-N51CG hydraulic hose crimping machine is a numerically controlled hose crimper with ergonomic height design. Support for pressing hydraulic hose up to 2 inch and indutrial hose up to 3 inch. It can be used for a variety of indutries such as automotive components, construction and agricultrual equipment, heavy hydraulic machinery, railroad, marine, electric transmission, wire and cables pressing.
MAIN ADVANTAGES
1. Double operating mode;
2. Customized die sets available;
3. OEM service;
4. Low noise level.
TECHNICAL DATA
|
Model |
MS-N51CG Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC |
|
Standard Voltage |
220 (V) / 380 (V) 50 (HZ) |
|
Motor Power |
3 (KW) |
|
Length |
800 (mm) |
|
Width |
640 (mm) |
|
Height |
1300 (mm) |
|
Weight |
320 (KG) |
51 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
- Special frequency 60HZ available
OPTIONAL
- Quick Change Tool
- UC control;
-
