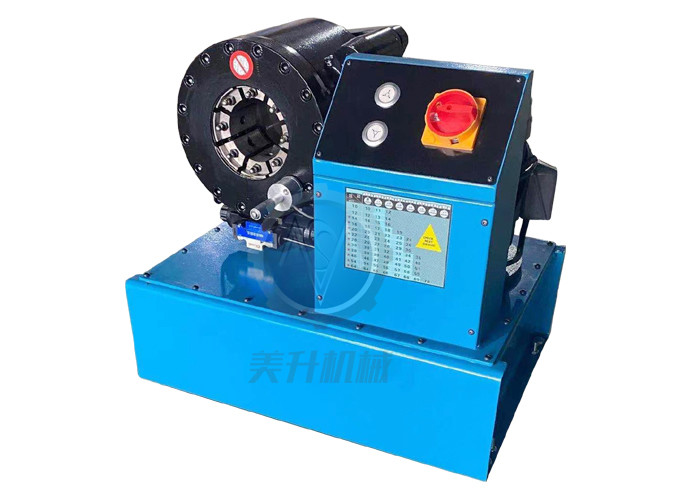

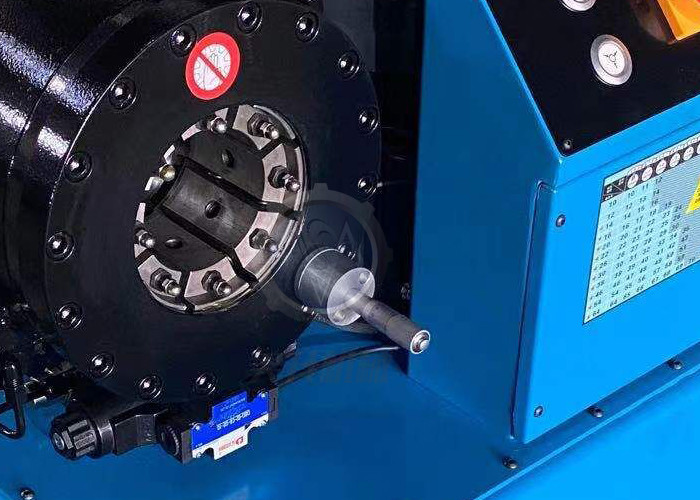

HYDRAULIC HIGH PRESSURE HOSE CRIMPER MACHINE MS-E38
DESCRIPTION
MS-E38 rubber hose crimping machine is the ideal choice for hydraulic and industrial machinery repair workshop. It is with big crimping force, capable of pressing hose fittings from 1/4 inch to 2 inch with high tensile steel wire 4 layers braided. MS-E38 hose crimper is a MS control model, which is very easy for user to learn the operation. The hydraulic crimping machine comes with 10 die sets as standard.
ADVANTAGES
► Suitable for rubber hose from 1/4'' to 2'' with 4 layers;
► Crimping die sets are with high hardness, long service life;
► Ergonomic machine design, easy and convenient;
► Fast opening and closing to iimprove the crimping efficiency;
TECHNICAL DATA
|
Model |
MS-E38 Pipe Pressing Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
38 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) |
|
Motor Power |
3 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) |
E38 HYDRAULIC CRIMPING MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6 * |
6 ... 8mm |
55mm |
|
8 * |
8 ... 10mm |
55mm |
|
10 * |
10 ... 12mm |
55mm |
|
12 * |
12 ... 14mm |
55mm |
|
14 |
14 ... 16mm |
60mm |
|
16 |
16 ... 20mm |
60mm |
|
20 |
20 ... 22mm |
60mm |
|
22 |
22 ... 26mm |
60mm |
|
26 |
26 ... 30mm |
70mm |
|
30 |
30 ... 38mm |
70mm |
|
38 |
38 ... 46mm |
70mm |
|
46 |
46 ... 54mm |
80mm |
|
54 |
54 ... 64mm |
80mm |
|
64 |
64 ... 69mm |
80mm |
|
69 * |
69 ... 74mm |
110mm |
| 74 * | 74 ... 78mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• UC control system
• Position limit device
E38 HOSE CRIMPING MACHINE IS WITH CE CERTIFICATE
