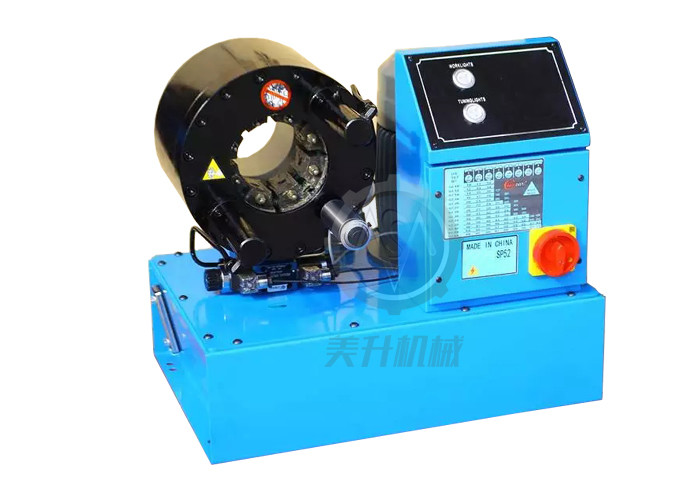

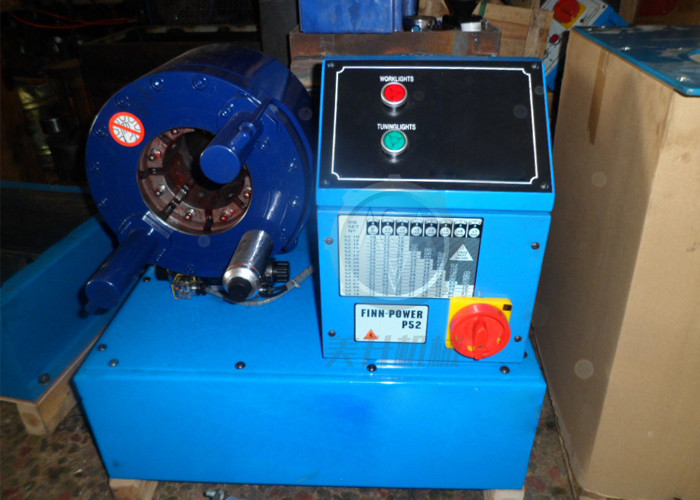

HYDRAULIC HOSE CRIMPING MACHINE MS-SP52
DESCRIPTION
MS-SP52 hose assembly pressing machine is designed for pressure flexible rubber hose from 1/4'' to 2'' inch making. It is with compact small structure, can be easily put on any rack or horizontal platform.
This 2 inch hydraulic crimping machine can be used not only for hydualic rubber hose fabricating, but also can be used for steel tube pressing, wire rope swaging, industrial pipe and cable crimping.
ADVANTAGES
1) Small size with big crimping and withholding force,
2) Advanced oil transfer system with auto heat releasing system,
3) Fast closing and opening speed with quick valve,
4) High efficiency and top accuracy with Finn Power crimping Dial,
5) Stable hose crimping performance due to high quality materials.
TECHNICAL DATA
|
Model |
MS-SP52 Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4'' - 2'' (inch) |
|
Max. Opening |
25 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
P52 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) / 4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) |
SP52 HYDRAULIC HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 14mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
60 |
|
30 |
30 - 38mm |
70 |
|
38 |
38 - 46mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
1) Customized crimping die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) * for non standard die sets.
OPTIONAL
1) Quick Die Change Tool;
2) Die Set Rack/ Machine Stand;
3) UC control;
4) Foot Pedal;
5) Pressure Gauge;
6) Normal Rack
► APPLICATION FIELD FOR SP52 HOSE CRIMPING MACHINE
SP52 cable pressing tool is often used for workshop hose repair service. The 10 die sets which are offered as standard, can swage hydraulic high pressure steel wire braided hose from 1/4'' to 2'', each die sets has each own crimping size, we recommend different hose size use different die sets to get the most ideal crimping effect.
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
