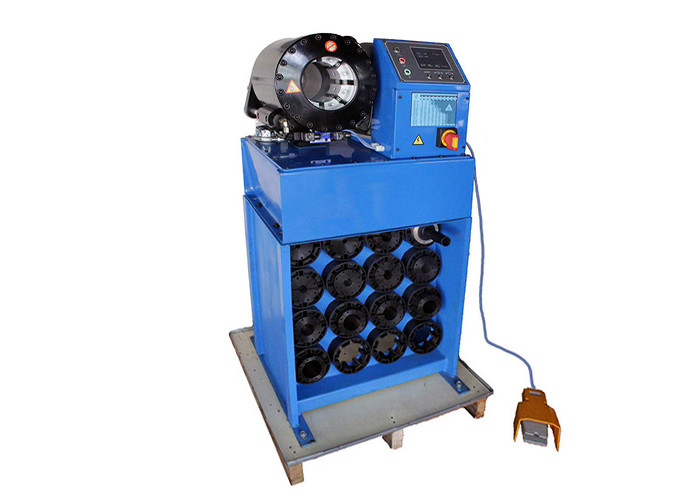

Hydraulic Hose Pipe Making Machine Hyd Hose Crimping Machine P32 Crimper

  • Hydraulic Hose Pipe Making Machine Hyd Hose Crimping Machine P32 Crimper
  • Hydraulic Hose Pipe Making Machine Hyd Hose Crimping Machine P32 Crimper
  • Hydraulic Hose Pipe Making Machine Hyd Hose Crimping Machine P32 Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number P32NC
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2.5inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 650T
Product Name P32NC Hose Crimping Machine Voltage 380V
Power 3.75KW Size 650*550*1360mm
Weight 310Kg
Highlight

Blue P32 Crimper

,

Hose Assembly Making P32 Crimper

,

Hydraulic P32 Crimping Machine
Leave a Message
Product Description



Hose Assembly Making Hydraulic Hose Crimping Machine P32 Hose Crimper

HOSE ASSEMBLY HYDRAULIC CRIMPING MACHINE P32NC

DESCRIPTION



P32NC automatic hose crimper is suitable for fabricating high pressure hydraulic hose from 1/4'' to 2'' with standard mould. The crimping range for this pressing tool is from 14mm to 87mm. The working stroke of the crimping cylinder is up to 31mm, very convenient for elbow fittings' swaging.



ADVANTAGES



► Complex cylinder with long service life time

► High accurate dial vernier for diameter control

► Emergency stop to prevent user from harm

► System pressure can hold for 0-10 seconds



TECHNICAL DATA



Model

P32NC Hydraulic Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

UC

Standard Voltage

380 (V) Three Phase

Motor Power

3.75 (KW)

Length

650 (mm)

Width

550 (mm)

Height

1360 (mm)

Weight

310 (KG)



Hydraulic Hose Pipe Making Machine Hyd Hose Crimping Machine P32 Crimper 0





P32NC HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6 *

6 - 8 mm

 55mm

8 *

8 - 10mm

 55mm

10 *

10 - 12mm

 55mm

12 *

12 - 14mm

 55mm

14

14 - 16mm

 55mm

16

16 - 19mm

 55mm

19

19 - 22mm

 55mm

22

22 - 26mm

 70mm

26

26 - 30mm

 70mm

30

30 - 34mm

 70mm

34

34 - 39mm

 75mm

39

39 - 45mm

 75mm

45

45 - 51mm

 90mm

51

51 - 57mm

 90mm

57

57 - 63mm

 100mm

63

63 - 69mm

 110mm

69

69 - 74mm

 110mm
74 * 74 - 78mm 110mm
78 * 78 - 87mm 110mm



NOTE



• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale



DETAILED SPARES



Hydraulic Hose Pipe Making Machine Hyd Hose Crimping Machine P32 Crimper 1



CRIMPING SAMPLES



Hydraulic hose assembly used in all kinds of hydraulic systems, like excavator, loader, cylinder, where there is need for the hydraulic hose to transfer the hydraulic oil.



Hydraulic Hose Pipe Making Machine Hyd Hose Crimping Machine P32 Crimper 2
