Specifications
Highlight:
6SP High Pressure Hose Crimping Machine
,Hydraulic 2 Inch Hose Crimping Machine
,Blue 2 Inch Hose Crimping Machine
Crimping Range:
6 - 220mm
Hose Size:
2'' 6SP (DN51)
Die Sets:
18 Sets
Color:
Blue Or Customized
Max. Opening:
82mm
Crimping Force:
320T
Product:
P140 Crimping Hose Machine
Application:
Workshop
Control Method:
Button Control
Voltage:
220V
Size:
950*880*1750mm
Weight:
1100Kg
Key Attributes
Brand Name:
MENSION
Model Number:
P140
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

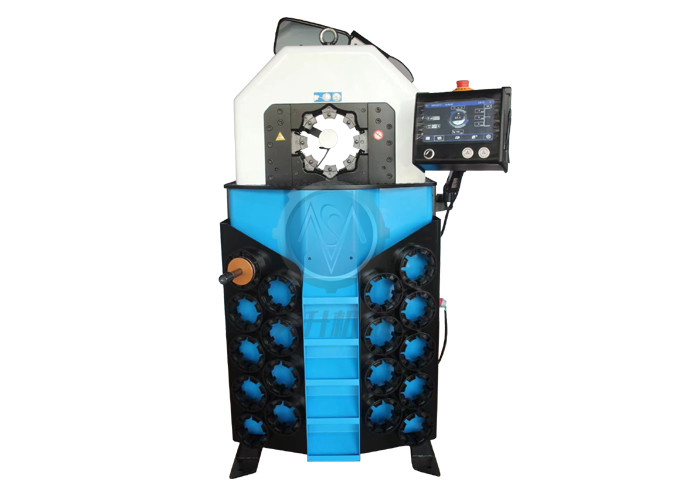

P140 Hydraulic Hose Crimping Machine
Professional 2-inch 6SP high pressure hydraulic hose crimping machine designed for large-scale hose assembly production.
Product Overview
The P140 hydraulic hose crimper is engineered for high-pressure hydraulic rubber hose applications up to 2-inch 6SP spiral pressing. Equipped with 18 sets of dies and one adapter die set, this machine can handle industrial hoses up to 4 inches in diameter, making it ideal for high-volume production environments.
Key Advantages
- High precision crimping with advanced diameter control dial
- Compatible with large elbow fittings
- Adjustable mouth opening diameter
- Crimping number function for production tracking
Technical Specifications
| Model | P140 Hose Crimping Machine Hydraulic |
|---|---|
| Crimping Range | 6 - 220 mm |
| Crimping Force | 320 Tons |
| Hose Size | 1/4" - 2" inch 6SP |
| Max. Opening | 82 mm |
| Die Sets | 18 |
| Die Set Type | P32 & P140 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control | UC |
| Standard Voltage | 220 V |
| Motor Power | 3 KW |
| Length | 950 mm |
| Width | 880 mm |
| Height | 1750 mm |
| Weight | 1100 KG |
P140 Hose Pressing Machine Die Sets
P32 Dies
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 74mm | 110 |
| 74 | 74 - 78mm | 110 |
| 78 | 78 - 84mm | 110 |
P140 Dies
| Die No. | Crimping Range | Length |
|---|---|---|
| 84 | 84 - 92mm | 110 |
| 92 | 92 - 100mm | 110 |
| 100 | 100 - 108mm | 110 |
| 108* | 108 - 116mm | 110 |
| 116* | 116 - 126mm | 110 |
| 126* | 126 - 136mm | 110 |
Important Notes
- Customized crimping die sets are available
- Special voltages (110V, 208V, 240V, 415V) are available
- * indicates non-standard die sets
- Includes one adapter die set
Standard Accessories
- Quick Die Change Tool
- Die Set Rack / Machine Stand
- UC/CNC Control
- Foot Pedal Switch
- Crimping Mirror
- Emergency Stop

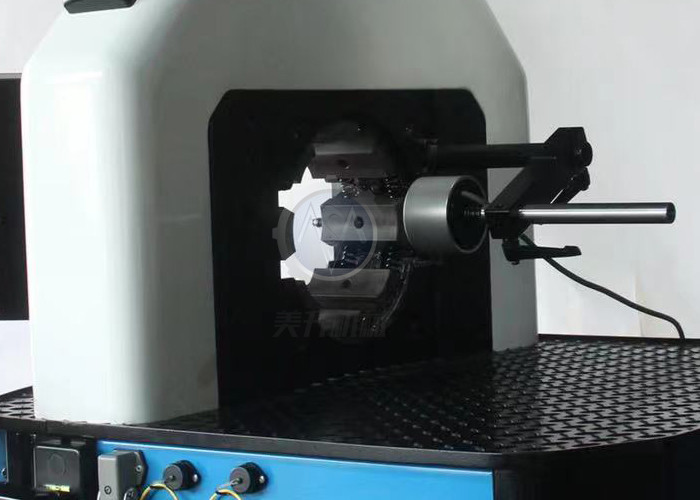

- Back Positioning Device
Applications
The P140 hydraulic crimping machine is designed for industrial applications requiring high-pressure hydraulic hose assemblies, including manufacturing, construction, mining, and heavy equipment maintenance.
