4 Inch Hydraulic Hose Crimping Machine Large Opening Industrial Hose Crimper

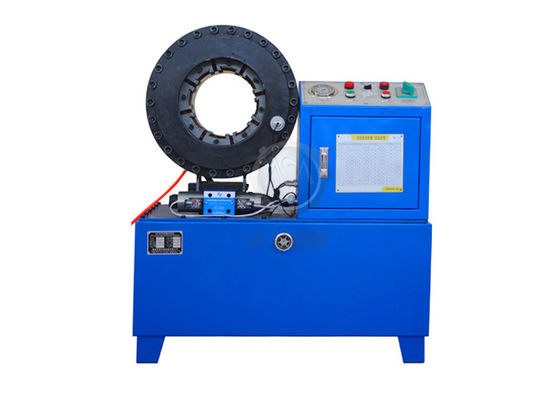

4 INCH HYDRAULIC HOSE CRIMPING MACHINE S102
DESCRIPTION
MS-S102 is a 4 inch 6sp hydraulic hose pressing machine with a large opening head. It has 16 standard dies and one adapter die sets which enable it crimp small size high pressure hose from 1/4'' inch and large diameter flexible hose up to 4'' inch.
The die sets are with high frequency processing, so with high hardness and also precise finish polishing makes it more proper for steel carbon ferrule pressing, to protect the surface during crimping.
MAIN ADVANTAGES
1. For high pressure and industrial hose from 1/4'' to 4'';
2. Large pressing force and big opening head;
3. Ergonomic design, suitable for worker operate;
4. High quality large flue oil pump.
TECHNICAL DATA
|
Model |
MS-S102 Hydraulic Hose Crimping Machine |
|
Crimping Range |
14 - 187 (mm) |
|
Crimping Force |
1500 (T) |
|
Hose Size |
1/4 - 4 (inch) 6 Layers |
|
Max. Opening |
30 (mm) |
|
Die Sets |
16 + 1 |
|
Die Set Type |
51 + 102 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
850 (mm) |
|
Width |
530 (mm) |
|
Height |
980 (mm) |
|
Weight |
510 (KG) |
S102 HOSE CRIMPER STANDARD DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 75 mm |
80 |
|
75 |
75 - 87 mm |
100 |
| 87 | 87 - 100 mm | 120 |
| 100 | 100 - 115 mm | 120 |
| 115 | 115 - 130 mm | 120 |
| 130 | 130 - 147 mm | 120 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
