P16 Hydraulic Hose Crimping Machine
,Hydraulic Hose Crimping Machine 1''
,1'' Manual Hydraulic Hose Crimping Machine
P16 Manual Hose Pressing Machine 1'' Hydraulic Hose Crimping Machine

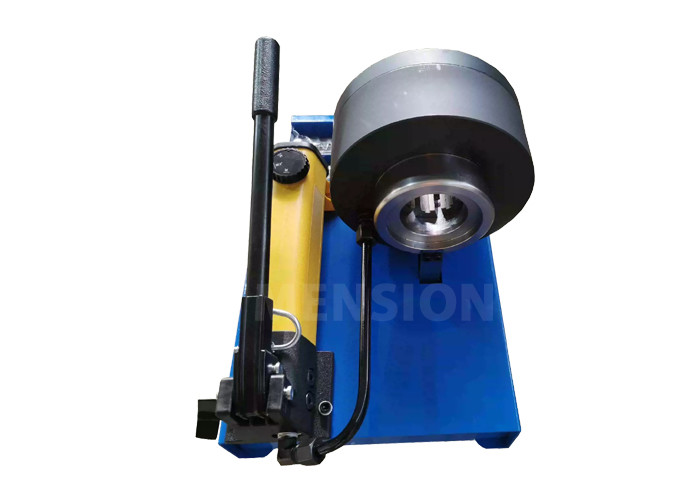

MANUAL HOSE PRESSING MACHINE P16
DESCRIPTION
P16 hose crimping tool is a hand machine for hydraulic hose assembly fabricating. It has light weight and very easy for operating. Max hose size it can press is 1'' inch with 4 layers braided. With unique hydraulic oil cylinder design, it can crimp the pipe fitting with no conical.
The die sets are with fine polishing treatment, so to protect the ferrule steel surface.
ADVANTAGES
1. Easy to operate;
2. Quick pressure releasing;
3. Accurate crimping dial;
4. Famous hydraulic pump.
TECHNICAL DATA
| Model | P16 Hose Pressing Machine |
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage |
Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |

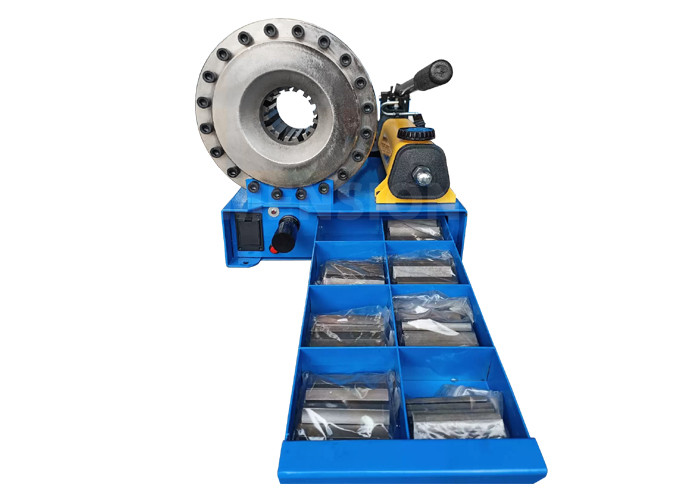

P16 HOSE PRESSING MACHINE DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 23 mm | 55 |
| 23 | 23 - 27 mm | 55 |
| 27 | 27 - 31 mm | 55 |
| 31 | 31 - 35 mm | 65 |
| 35 | 35 - 41 mm | 65 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
- UC control;
P16 HDYARULIC CRIMPING MACHINE APPLICATIONS
-
