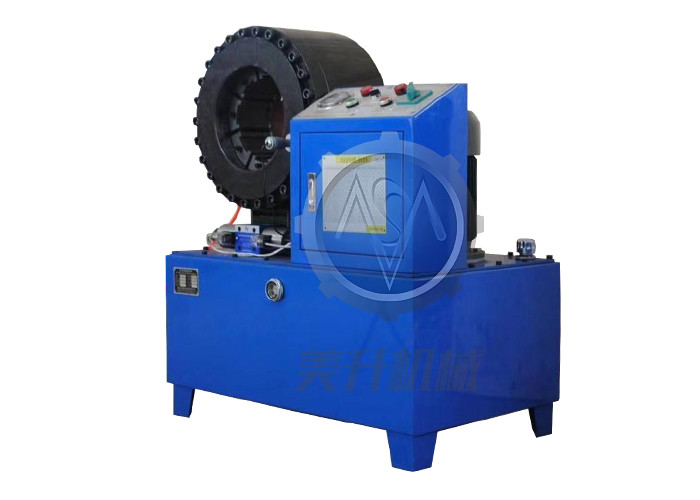

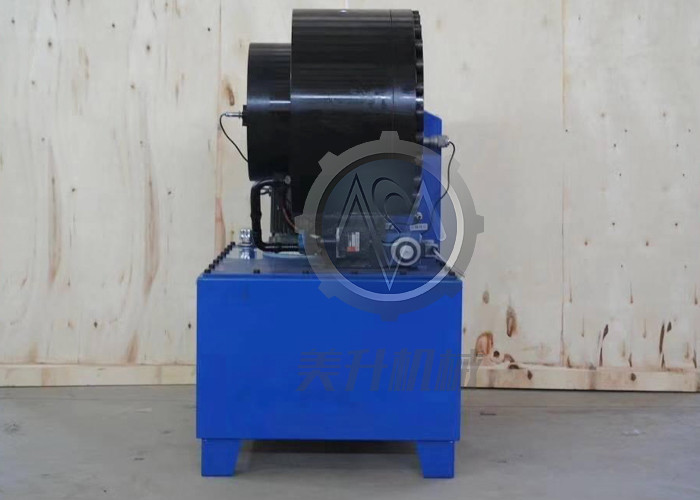

102mm Hydraulic Brake Hose Crimping Machine High Pressure Pipe Pressing Tool

  • 102mm Hydraulic Brake Hose Crimping Machine High Pressure Pipe Pressing Tool
  • 102mm Hydraulic Brake Hose Crimping Machine High Pressure Pipe Pressing Tool
  • 102mm Hydraulic Brake Hose Crimping Machine High Pressure Pipe Pressing Tool
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-S102
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 187mm Hose Size 1/4 - 4inch
Die Sets 16+1 Color Blue
Max. Opening 30mm Crimping Force 1500T
Product Name S102 Brake Hose Crimping Machine Application Production
Voltage 380V Power 4KW
Size 850*530*980mm Weight 500Kg
Highlight

102mm Brake Hose Crimping Machine

,

Hydraulic Brake Hose Crimping Machine
Leave a Message
Product Description





HYDRAULIC BRAKE HOSE CRIMPER MACHINE MS - S102

DESCRIPTION



When it comes to handling large pipes with precision and efficiency, the 102mm Large Pipe Crimping Machine stands as a powerhouse in the realm of industrial equipment.



Designed to tackle hefty pipe diameters with ease, this cutting-edge machine revolutionizes the crimping process. Its robust hydraulic system ensures secure connections, providing a reliable and leak-free sealing solution for a wide range of applications. With its advanced crimping technology, this machine delivers consistent and uniform results, guaranteeing optimal performance and longevity.



Equipped with user-friendly controls and intuitive features, operators can navigate the crimping process effortlessly, saving time and enhancing productivity. From construction projects to infrastructure development, the 102mm Large Pipe Crimping Machine is the ultimate tool for achieving durable and high-quality pipe assemblies in various industrial sectors.



MAIN ADVANTAGES



1. Time-saving: Accelerates large pipe crimping.
2. Leak-proof: Ensures tight and secure connections.
3. Adaptable: Accommodates various pipe sizes.
4. Accurate: Provides precise and consistent results.
5. Robust: Designed for rugged industrial environments.
6. Intuitive: User-friendly controls for effortless operation.



TECHNICAL DATA



Model

MS-S102 Brake Hose Crimping Machine

Crimping Range

14 - 187 (mm)

Crimping Force

1500 (T)

Hose Size

1/4 - 4 (inch) 6 Layers

Max. Opening

30 (mm)

Die Sets

16 + 1

Die Set Type

51 + 102

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

4 (KW)

Length

850 (mm)

Width

530 (mm)

Height

980 (mm)

Weight

500 (KG)



102mm Hydraulic Brake Hose Crimping Machine High Pressure Pipe Pressing Tool 0

51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 75 mm

 80

75

75 - 87 mm

 100
87 87 - 100 mm 120
100 100 - 115 mm 120
115 115 - 130 mm 120
130 130 - 147 mm 120



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



OPTIONAL



- Quick Change Tool

- UC control;
