Manual Hose Crimper 2 Inch
,Workshop Portable Hydraulic Hose Crimper
,Hydraulic Pipe Pressing Machine 51m

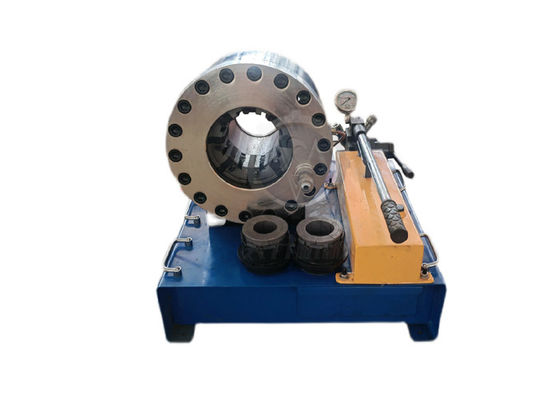

MANUAL HOSE CRIMPER MACHINE MS-51M
DESCRIPTION
The Manual Hose Crimping Machine with Hand Pump combines the convenience of manual operation with the power of hydraulic crimping. This portable and compact machine offers exceptional control and accuracy, ensuring consistent andsecure hose connections every time.
Featuring a sturdy construction and durable materials, this machine is built to withstand the rigors of demanding work environments. The hand pump allows for effortless crimping, reducing operator fatigue during extended use. Additionally, its compact design makes it easy to transport and store, making it a valuable asset for mobile technicians and field workers.
This versatile machine is compatible with a wide range of hose sizes and types, accommodating various industrialand commercial applications. Whether you're working with hydraulic hoses, fuel lines, or pneumatic tubes, the Manual Hose Crimping Machine with Hand Pump provides reliable results.
Furthermore, the user-friendly operation of this machine makes it suitable for both seasoned professionals and beginners. Withminimal training, anyone can quickly learn to operate the machine effectively, enhancing productivity and reducing downtime.
ADVANTAGES
1. Versatile compatibility with various hoses.
2. User-friendly operation for all.
3. Sturdy and durable construction.
4. Portable and compact design.
TECHNICAL DATA
|
Model |
51M Hydraulic Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
350 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
Manual Pump |
|
Motor Power |
Manual Pump |
|
Length |
730 (mm) |
|
Width |
550 (mm) |
|
Height |
680 (mm) |
|
Weight |
170 (KG) |
51 PRESSING MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 14 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
13 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 74mm | 80 |
NOTE
• * for non standard die sets;
• Customized die sets are available;
• Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack;
• UC control;
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
