Specifications
Highlight:
1 Inch Hydraulic Hose Crimper
,P16HP AC Hose Crimping Machine
,Small AC Hose Crimping Machine
Crimping Range:
14 - 45mm
Hose Size:
1/4 - 1inch
Die Sets:
7
Color:
Blue
Max. Opening:
20mm
Crimping Force:
150T
Product Name:
P16HP AC Hose Crimping Machine
Application:
Workshop
Oil Tank:
20L
Power:
Manual Pump
Size:
400*320*300mm
Weight:
32Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P16HP
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
P16HP AC Hose Crimping Machine 1 Inch Hydraulic Hose Crimper Gas Hose Crimp

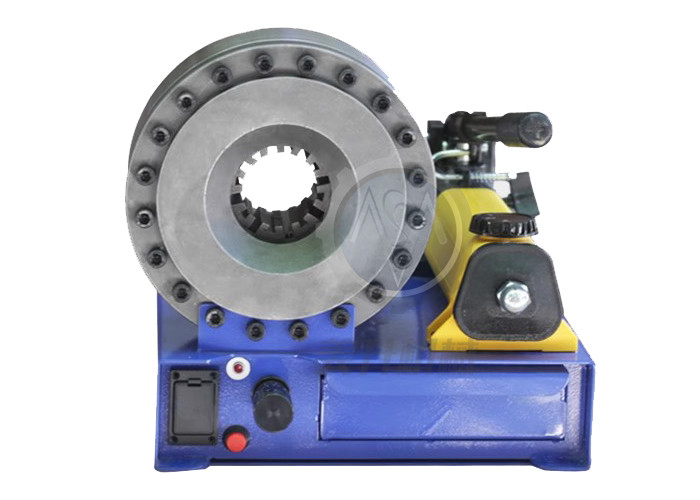

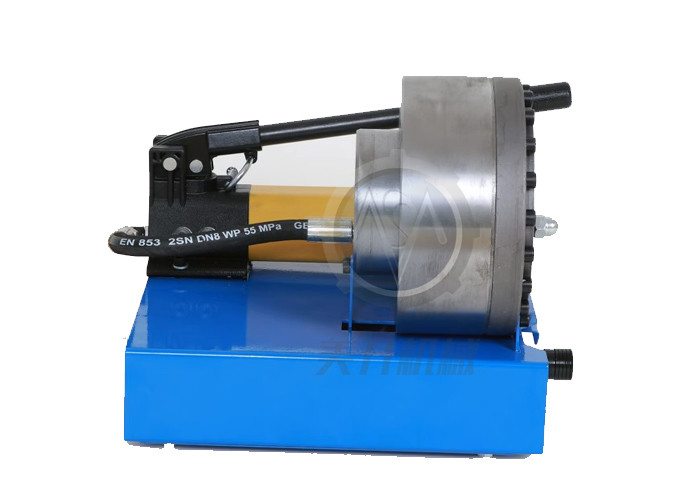

AC HOSE CRIMPING HYDRAULIC MACHINE P16HP
The P16HP Manual Hand Pump Hose Crimper is a reliable and portable tool designed for efficient hose assembly and repair. With its durable construction and user-friendly design, this manual crimping machine ensures accurate and secure hose connections. Its compact size and lightweight nature make it easy to transport and operate in different work environments.
The P16HP accommodates a wide range of hose sizes and fittings, providing versatility for various applications. Whether you're working on-site or require a portable solution, the P16HP Manual Hand Pump Hose Crimper delivers consistent performance and reliability, making it an essential tool for professionals in need of precise hose crimping.
MAIN FEATURES
- Portable and Lightweight: Easy to transport
- Versatile Compatibility: Wide range of applications
- Accurate and Secure: Reliable hose connections
- User-Friendly Design: Easy to operate
TECHNICAL DATA
| Model | P16HP AC Hose Crimping Machine |
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |
P16 HOSE PRESSING MACHINE DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 23 mm | 55 |
| 23 | 23 - 27 mm | 55 |
| 27 | 27 - 31 mm | 55 |
| 31 | 31 - 35 mm | 65 |
| 35 | 35 - 41 mm | 65 |
NOTE
- * for non standard die sets
- Customized die sets are available
- Max. opening is the stroke between die sets fully closed and fully opened
- Customized die sets are available
- Max. opening is the stroke between die sets fully closed and fully opened
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack
- UC control
P16 HYDRAULIC CRIMPING MACHINE APPLICATIONS
