Specifications
Highlight:
25mm High Pressure Hose Crimping Machine
,High Pressure Portable Hydraulic Hose Crimper
,P16HP High Pressure Hose Crimper
Crimping Range:
14 - 45mm
Hose Size:
1/4 - 1inch
Die Sets:
7
Color:
Blue
Max. Opening:
20mm
Crimping Force:
150T
Product Name:
P16HP High Pressure Hose Crimping Machine
Application:
Workshop
Oil Tank:
20L
Power:
Manual Pump
Size:
400*320*300mm
Weight:
32Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P16HP
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

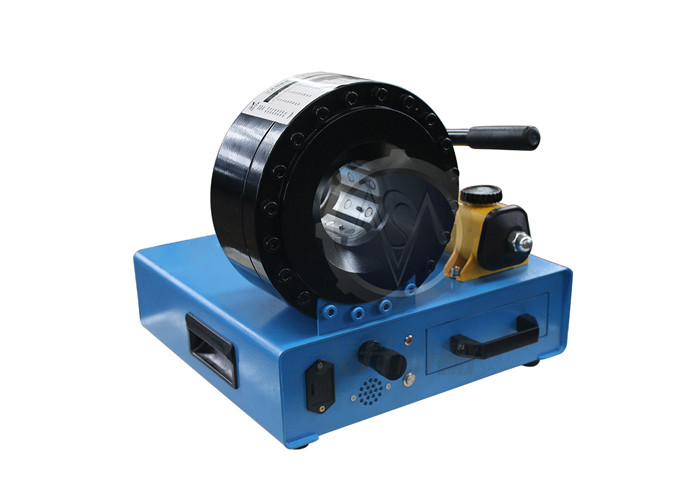

25mm High Pressure Hose Crimping Machine P16HP Portable Hydraulic Hose Crimper
Product Overview
Introducing the P16HP Manual Portable Hose Crimper, a versatile and robust tool designed for efficient hose assembly and repair tasks. This portable crimper features a high-pressure capability and hand pump operation, making it ideal for professionals in various industries.
The P16HP ensures precise and secure crimps, delivering reliable and leak-free hose connections. With its portable design and easy-to-use hand pump, this crimper offers flexibility and convenience for on-site applications. Its durable construction and ergonomic design make it reliable and easy to handle.
Main Features
- High-Pressure Capability: Powerful crimping force for demanding applications
- Portable Design: Easy to transport and use on-site
- Hand Pump Operation: Manual and efficient operation without external power
- Precise Crimping Results: Accurate hose connections for leak-free performance
- Durable and Reliable: Long-lasting performance in industrial environments
Technical Specifications
| Model | P16HP Portable Cable Pressing Tool |
|---|---|
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |

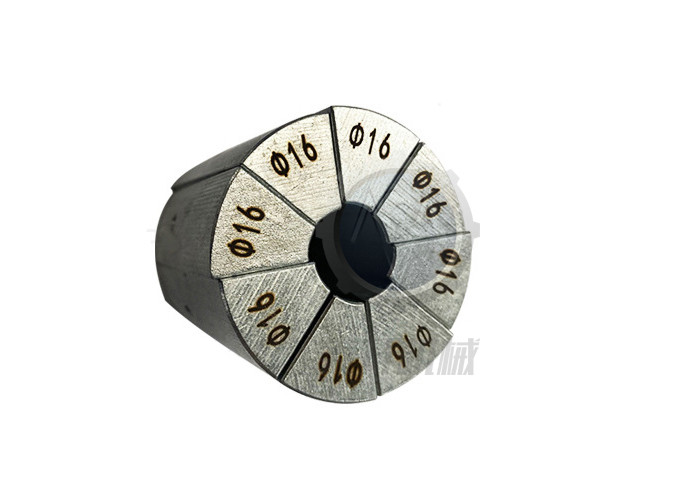

P16 Hose Pressing Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 23 mm | 55 |
| 23 | 23 - 27 mm | 55 |
| 27 | 27 - 31 mm | 55 |
| 31 | 31 - 35 mm | 65 |
| 35 | 35 - 41 mm | 65 |
Notes:
- * for non-standard die sets
- Customized die sets are available
- Max. opening is the stroke between die sets fully closed and fully opened
- * for non-standard die sets
- Customized die sets are available
- Max. opening is the stroke between die sets fully closed and fully opened
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control
Applications
