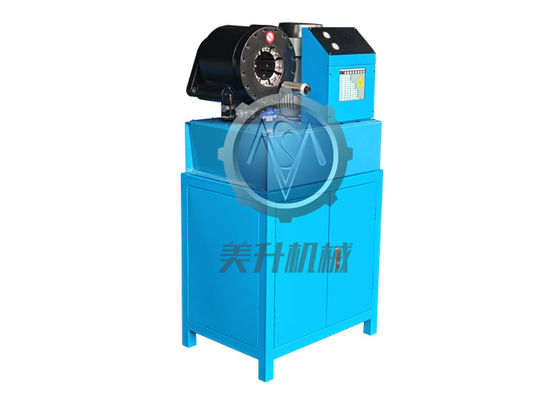

3 Inch Hydraulic Hose Pipe Crimping Machine P32 Hose Crimper

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number S32
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2.5inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 650T
Product Name S32 Hose Crimper Machine Application Workshop
Warranty 3 Years Power 4KW 50Hz
Size 650*550*1360mm Weight 310Kg
High Light

P32 Hydraulic Hose Pipe Crimping Machine

,

3 Inch Hydraulic Pipe Crimping Machine

,

Automotive Hydraulic Hose Crimper

Leave a Message
Product Description



S32 HOSE PIPE CRIMPING MACHINE FOR SALE


DESCRIPTION



The S32 hose crimper, capable of handling hoses from 1/4 inch to 2 inches in diameter, is a versatile tool used in industries like automotive and hydraulics. This equipment ensures precise crimping of hose fittings for secure connections. It features interchangeable dies to accommodate various hose sizes and fittings, adjustable settings for pressure and depth, and often employs hydraulic power for effective crimping.



User-friendly controls, safety features, and robust construction enhance its usability and durability. Hose crimpers are crucial for maintaining reliable connections in hydraulic systems, automotive components, and industrial applications.



MAIN FEATURES



1. Crimping Range: Capable of handling hoses with diameters spanning from 1/4 inch to 2 inches, making it adaptable for various applications.
2. Interchangeable Dies: Typically equipped with interchangeable die sets to accommodate different hose sizes and fitting types.
3. Adjustable Settings: Offers adjustable settings for crimping pressure and depth, ensuring a precise and consistent crimp.
4. Hydraulic Power: Many hose crimpers are hydraulically powered, providing the necessary force for effective crimping.



TECHNICAL DATA



 Model

 S32 Hose Crimper Pressing Machine

 Crimping Range

 14 - 87 (mm)

 Crimping Force

 650 (T)

 Hose Size

 1/4 - 2.5 (inch)

 Max. Opening

 31 (mm)

 Die Sets

 13

 Die Set Type

 P32

 System Pressure

 31.5 (Mpa)

 Accuracy

 0.01 (mm)

 Control

 MS

 Standard Voltage

 220 (V)

 Motor Power

 3 (KW)

 Length

 650 (mm)

 Width

 550 (mm)

 Height

 1360 (mm)

 Weight

 310 (KG)



3 Inch Hydraulic Hose Pipe Crimping Machine P32 Hose Crimper 0



P32 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

Length

*

6 ... 8mm

55mm

*

8 ... 10mm

55mm

10 *

10 ... 12mm

55mm

12 *

12 ... 14mm

55mm

14

14 ... 16mm

55mm

16

16 ... 19mm

55mm

19

19 ... 22mm

55mm

22

22 ... 26mm

70mm

26

26 ... 30mm

70mm

30

30 ... 34mm

70mm

34

34 ... 39mm

75mm

39

39 ... 45mm

75mm

45

45 ... 51mm

90mm

51

51 ... 57mm

90mm

57

57 ... 63mm

100mm

63

63 ... 69mm

110mm

69

69 ... 74mm

110mm
74 * 74 ... 78mm 110mm
78 * 78 ... 87mm 110mm



NOTE



• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale



OPTIONAL



• UC control system

• Position limit device





CRIMPING APPLICATIONS FOR THE P32 HYDRAULIC HOSE CRIMPING MACHINE



3 Inch Hydraulic Hose Pipe Crimping Machine P32 Hose Crimper 1
