Concrete Manual High Pressure Hose Machine Crimping P16 Crimp Hose Ferrules

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-P16
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 45mm Hose Size 1/4 - 1inch
Die Sets 7 Color Blue
Max. Opening 20mm Crimping Force 150T
Product Name P16 High Pressure Hose Machine Application Service
Oil Tank 20L Power Hand Pump
Size 400*320*300mm Weight 32Kg
High Light

P16 High Pressure Hose Crimping Machine

,

Concrete Manual High Pressure Hose Crimper

,

High Pressure Hose Machine 45mm

Leave a Message
Product Description

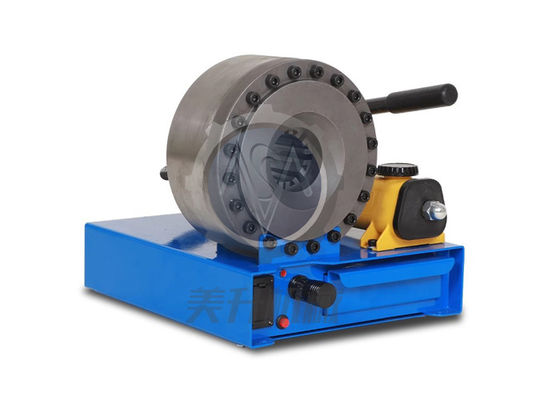

HIGH PRESSURE HOSE CRIMPING MACHINE P16


DESCRIPTION AND MAIN FEATURES



1. Durability:

    Built to withstand rigorous usage, our portable manual 1-inch hose crimping machine is constructed from high-quality materials, ensuring long-lasting performance even in challenging work environments. Its robust build guarantees reliability, making it a durable investment for your business needs.



2. Quick Setup:

    Say goodbye to time-consuming setups. This crimping machine is engineered for efficiency, allowing you to start working swiftly. Its intuitive design and easy-to-follow instructions enable you to set up the machine quickly, saving you valuable time and effort on the job.



3. Safety Features:

    Your safety is our priority. Our crimping machine comes with built-in safety features, such as protective guards and secure locking mechanisms, minimizing the risk of accidents during operation. Work with peace of mind, knowing that you are using a machine designed with your safety in mind.



TECHNICAL DATA



Model P16 Manual High Pressure Crimping Machine
Crimping Range 14 - 47 (mm)
Crimping Force 150 (T)
Hose Size 1/4 - 1 (inch)
Max. Opening 20 (mm)
Die Sets 7
Die Set Type P16
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage

Manual Pump

Motor Power Manual Pump
Length 400 (mm)
Width 320 (mm)
Height 300 (mm)
Weight 32 (KG)



Concrete Manual High Pressure Hose Machine Crimping P16 Crimp Hose Ferrules 0

P16 HOSE PRESSING MACHINE DIE SETS



Die No. Crimping Range Length
6* 6 - 8 mm 55
8* 8 - 10 mm 55
10* 10 - 12 mm 55
12* 12 - 14 mm 55
14 14 - 16 mm 55
16 16 - 19 mm 55
19 19 - 23 mm 55
23 23 - 27 mm 55
27 27 - 31 mm 55
31 31 - 35 mm 65
35 35 - 41 mm 65



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Max. opening is the stroke between die sets fully closed and fully opened.



OPTIONAL



- Quick Change Tool

- Quick Change Die Set Rack;

- UC control;



P16 HDYARULIC CRIMPING MACHINE APPLICATIONS



Concrete Manual High Pressure Hose Machine Crimping P16 Crimp Hose Ferrules 1
