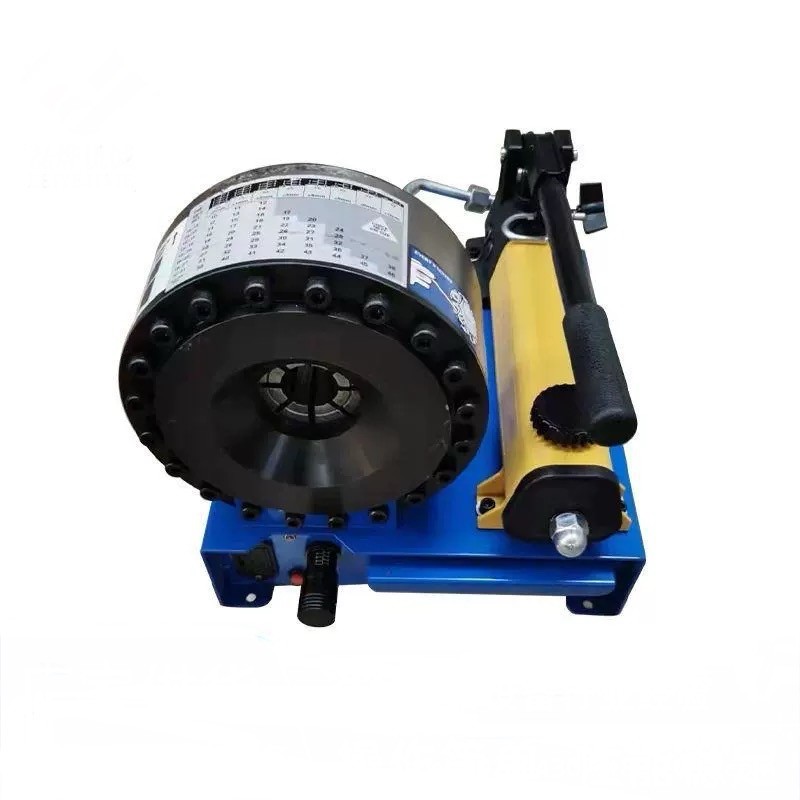

PORTABLE HOSE CRIMPING PRESS MACHINE P16
DESCRIPTION
Introducing the 1-Inch Hose Crimping Machine: Revolutionizing Hose Assembly
In the realm of industrial equipment, precision and efficiency are paramount. Enter the 1-Inch Hose Crimping Machine, a cutting-edge innovation poised to redefine hose assembly processes. Designed to handle hoses with a diameter of up to one inch, this machine offers unparalleled accuracy and reliability in crimping operations.
With its compact design and user-friendly interface, this machine streamlines the assembly process, saving valuable time and resources. Whether in automotive, construction, or manufacturing industries, the 1-Inch Hose Crimping Machine promises to elevate efficiency and performance to new heights. Say goodbye to manual crimping methods and welcome the future of hose assembly technology.
MAIN FEATURES
1. Portability:
Our manual 1-inch hose crimping machine is compact and lightweight, allowing you to carry it anywhere, ensuring convenience and flexibility in your work environment.
2. Precision Crimping:
Experience accurate and secure hose fittings every time. This machine is designed with precision in mind, ensuring that your crimps are reliable and leak-free, meeting industry standards with ease.
3. Easy to Use:
User-friendly design makes crimping hoses a breeze. With simple operating mechanisms, you can quickly achieve professional-grade results without the need for complicated setups or external power sources. Master the art of hose crimping effortlessly!
TECHNICAL DATA
| Model | P16 Portable Hose Pressing Machine |
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage |
Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |
P16 HOSE PRESSING MACHINE DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 23 mm | 55 |
| 23 | 23 - 27 mm | 55 |
| 27 | 27 - 31 mm | 55 |
| 31 | 31 - 35 mm | 65 |
| 35 | 35 - 41 mm | 65 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
- UC control;
P16 HDYARULIC CRIMPING MACHINE APPLICATIONS
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
