Specifications
Highlight:
Hydraulic Hose Crimping Machine
,P32MS Hose Crimping Machine
,Hydraulic Pipe Press Hose Crimping Machine
Model:
P32MS
Crimping Range:
14-87mm
Hose Size:
.5in To 2in
Capacity:
Press Pipe Fittings
Color:
OEM
Voltage:
380V
Frequency:
50HZ Or 60HZ
Pressure:
31.5Mpa
Standard Dies:
13
Quick Change:
Included
Key Attributes
Brand Name:
MENSION
Model Number:
P32MS
Place of Origin:
China
Certification:
CE ROHS TUV
Minimum Order Quantity:
1 Set
Price:
Price Negotiable
Supply Ability:
100 Sets per Week
Delivery Time:
2-5 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
Plywood Case
Product Description
P32 High Pressure Hose Crimping Machine

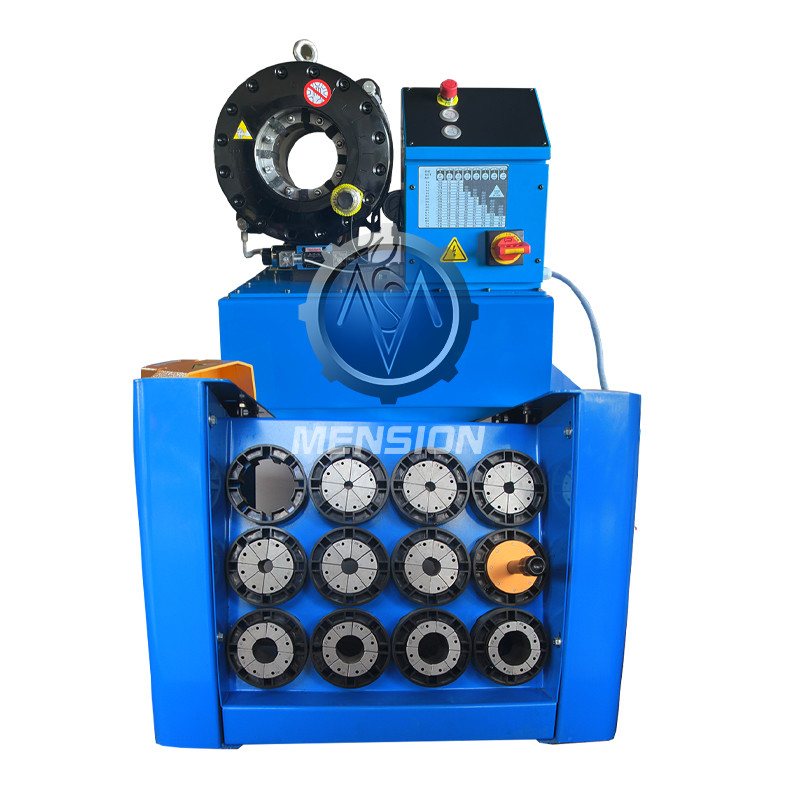

HYDRAULIC HOSE CRIMPING MACHINE P32MS
The P32MS crimper is designed for crimping hydraulic hose from 1/4 inch up to 2.5 inch. Its compact structure delivers substantial crimping capability, easily fabricating even 6 layer high pressure hoses.
Featuring quick-change tooling, users can install all eight die pieces simultaneously, eliminating the need for individual die changes and significantly improving production efficiency.
The foot pedal operation frees both hands, allowing operators to focus entirely on the crimping process for optimal results.
Key Advantages
- Rapid operation with specialized quick opening and closing mechanism
- Emergency stop function for enhanced operator safety
- High precision crimping with advanced diameter control dial
- Premium brand components available for high-configuration requirements
Technical Specifications
| Model | P32MS Hose Crimping Machine |
| Crimping Range | 14mm to 87mm |
| Hose Size | 0.5 inch to 2.5 inch |
| Die Sets | 13 Sets |
| Crimping Force | 6500KN |
| System Pressure | 31.5Mpa |
| Voltage | 220V or 380V |
| Frequency | 50HZ or 60HZ |
| Power | 4KW |
| Oil Tank | 50L |
| Hydraulic Oil | T46 or T68 |
| Dimension | 650*550*1350mm |
| Weight | 300Kgs |
| Certificate | CE ROHS TUV |

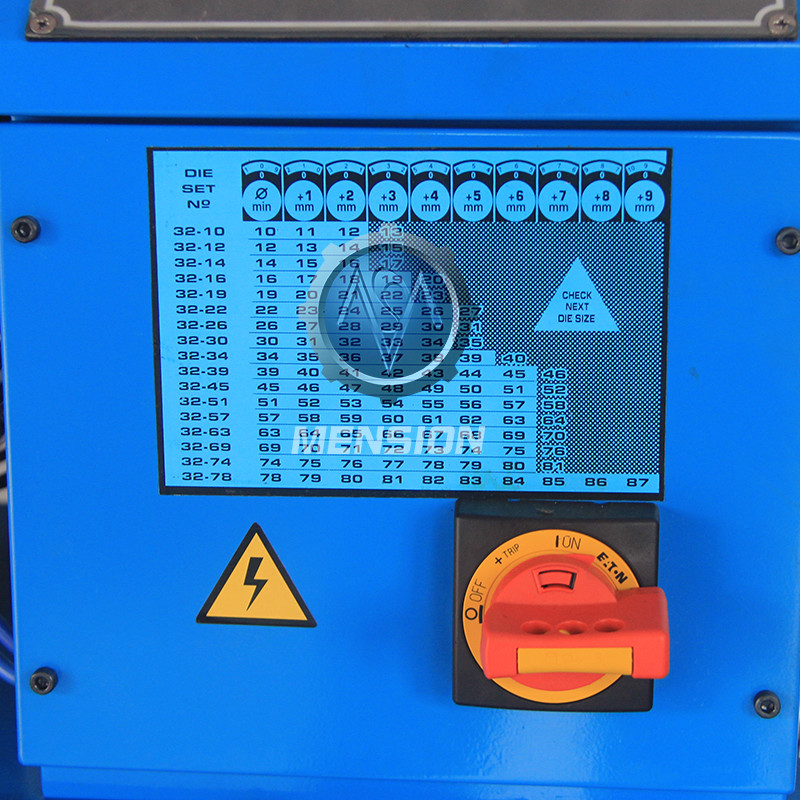

P32MS Standard Die Sets
| No. | Crimping Range | Length (mm) |
|---|---|---|
| 14 | 14...16mm | 55 |
| 16 | 16...19mm | 55 |
| 19 | 19...22mm | 55 |
| 22 | 22...26mm | 70 |
| 26 | 26...30mm | 70 |
| 30 | 30...34mm | 70 |
| 34 | 34...39mm | 75 |
| 39 | 39...45mm | 75 |
| 45 | 45...51mm | 90 |
| 51 | 51...57mm | 90 |
| 57 | 57...63mm | 100 |
| 63 | 63...69mm | 110 |
| 69 | 69...74mm | 110 |
Included & Optional Accessories
Foot Pedal (Included)
Machine Rack (Included)
Die Sets Rack (Included)
Quick Change Dies (Included)
Quick Change Tool (Included)
Emergency Stop (Included)
Rexroth System (Included)
Siemens Motor (Optional)
13 Sets Dies (Included)
Customized Dies (Optional)
Eton Switch System (Optional)
