Workshop Hydraulic Hose Crimping Machine 220V Press Hose Fitting Machine

  • Workshop Hydraulic Hose Crimping Machine 220V Press Hose Fitting Machine
  • Workshop Hydraulic Hose Crimping Machine 220V Press Hose Fitting Machine
  • Workshop Hydraulic Hose Crimping Machine 220V Press Hose Fitting Machine
Place of Origin China
Brand Name MENSION
Certification CE ROHS TUV
Model Number P32MS
Minimum Order Quantity 1 Set
Price Price Negotiable
Packaging Details Plywood Case
Delivery Time 2-5 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model P32MS Crimping Range 14-87mm
Hose Size .5in To 2in Application Press Pipe Fittings
Color OEM Voltage 380V
Frequency 50HZ Or 60HZ Pressure 31.5Mpa
Standard Dies 13 Quick Change Included
Highlight

Press Hose Crimping Machine

,

P32MS Hose Crimping Machine

,

Hose Crimping Machine
Leave a Message
Product Description



HYDRAULIC HOSE CRIMPING MACHINE P32MS







The pipe press tool P32MS is designed based on world famous brand. It is capable of fabricating of high pressure hoses from 6mm to 51mm with 4 layers or even 6 layers.

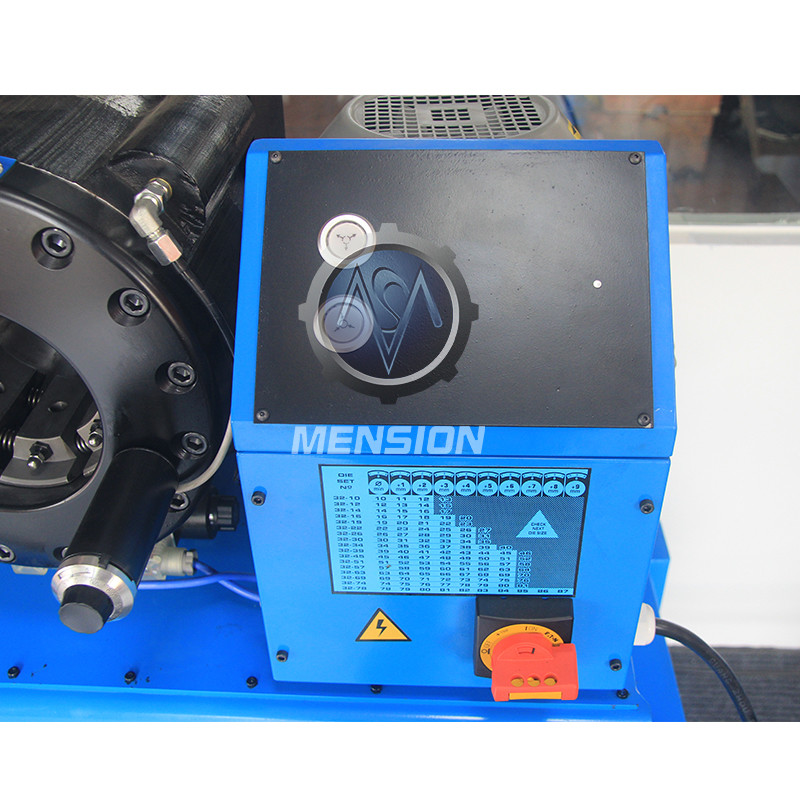

The crimper is with a die sets choosing reference sheet, new user can start the business very quickly and easily. Standard machine is with 50HZ frequency, customized 60HZ is available.



Dies can be changed with a quick change tool or manually with a special fork.





ADVANTAGES:



1. Quick speed with the special quick opening and closing device;

2. Emenrgency stop which can protect the worker from danger;

3. High precision with high-tech crimping diameter control dial;

4. Famous brand spare parts optional for high configuration need.

5. High efficiency for large hose assembly making industry;



6. Full technical support online and technician available for local area.





TECHNICAL PARAMETERS





Description

Parameter

Model

P32MS Hose Crimping Machine

Crimping Range

14mm to 87mm

Hose Size

0.5 inch to 2.5 inch

Die Sets

13 Sets

Crimping Force

6500KN

System Pressure

31.5Mpa

Voltage

220V or 380V

Frequency

50HZ or 60HZ

Power

4KW

Oil Tank

50L

Hydraulic Oil

T46 or T68

Dimension

650*550*1350mm

Weight

300Kgs

Certificate

CE ROHS TUV





P32MS STANDARD DIE SETS





No.

Crimping Range

Length

14

14...16mm

55

16

16...19mm

55

19

19...22mm

55

22

22...26mm

70

26

26...30mm

70

30

30...34mm

70

34

34...39mm

75

39

39...45mm

75

45

45...51mm

90

51

51...57mm

90

57

57...63mm

100

63

63...69mm

110

69

69...74mm

110

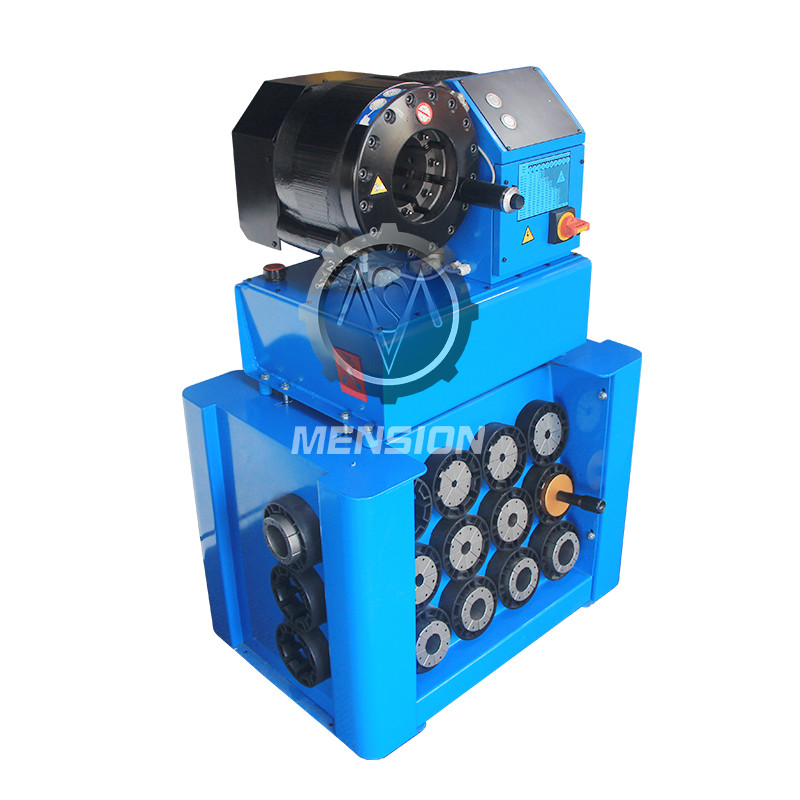

Workshop Hydraulic Hose Crimping Machine 220V Press Hose Fitting Machine 0

ACCESSORIES



  •  Foot Pedal (Included)

  •  Machine Rack (Included)

  •  Die Sets Rack (Included)

  •  Quick Change Dies (Included)

  •  Quick Change Tool (Included)

  •  Emergency Stop (Included)

  •  Rexroth System (Included)

  •  Siemens Motor (Optional)

  •  13 Sets Dies (Included)

  •  Customized Dies (Optional)

  •  Eton Switch System (Optional)



Workshop Hydraulic Hose Crimping Machine 220V Press Hose Fitting Machine 1
