2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper

  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
Place of Origin China
Brand Name MENSIONFLEX
Certification CE ROHS ISO
Model Number MS-51
Minimum Order Quantity 1 SET
Packaging Details Each Ply-wood case for one set
Delivery Time 2 - 5 working days
Payment Terms T/T,L/C,D/A,D/P,Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model MS-51 Color Blue Or White
Crimping Range 15mm - 87mm Die Sets 10
Max Opening 33mm Accuracy 0.01mm
Crimping Force 600T System Pressure 31.5Mpa
Operate Mode Automatic/ Manual
Highlight

2 Inch Rubber Hose Crimping Machine

,

600T Crimping Force Hydraulic Hose Crimper

,

0.01mm Accuracy Hose Crimping Tool
Leave a Message
Product Description

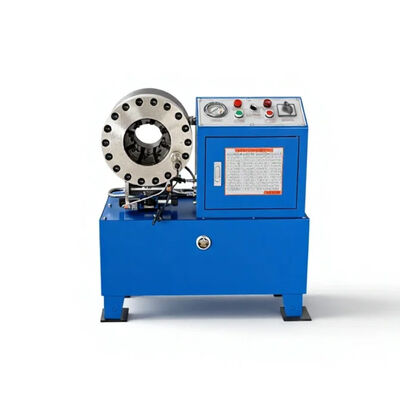

MS-51 High Pressure Rubber Hose Crimping Machine
The MS-51 hose crimper is engineered for rubber hose pressing from 1/4 inch to 2 inch diameters. Equipped with 10 die sets ranging from 15mm to 63mm, this machine ensures each hose, fitting, and ferrule combination receives precise crimping treatment. The result is hose assemblies with perfect surface finish, preventing oil leakage and extending hydraulic hose service life.
Key Advantages
  • Dual operation modes for operator convenience and flexibility
  • High-precision crimping dial for accurate size control
  • High-hardness die sets for extended service life
  • Multiple hydraulic pump options for different working environments
Technical Specifications
Model MS-51 Rubber Hose Crimping Machine
Crimping Range 15 - 87mm
Hose Size 1/4" - 2"
Max Opening +33mm
Die Sets 10 sets
Die Type 51
Accuracy 0.01mm
System Pressure 31.5Mpa
Voltage 110V/220V/380V
Motor Power 3KW/4KW
Dimension 680*560*710mm
Weight 245KGS
2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper 0
Additional Notes
  • Die sets available in various sizes, lengths, and shapes
  • Custom voltage and frequency options available
  • Multiple color choices available
  • Max. Opening refers to the working stroke for the cylinder
MS-51 Hose Crimper Die Sets
Code Crimping Range (mm) Length (mm)
15 15 - 19 60
19 19 - 23 60
23 23 - 26 60
26 26 - 31 60
31 31 - 36 70
36 36 - 41 70
41 41 - 47 70
47 47 - 55 80
55 55 - 63 80
63 63 - 74 80
High Hardness Die Sets (59-63HRC)
2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper 1
