Specifications
Highlight:
2 Inch DX68 Hose Crimping Machine
,Excavator Repair DX68 Hose Crimping Machine
,2 Inch Hose Crimping Machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Max. Opening:
30mm
Crimping Force:
500T
System Pressure:
31.5Mpa
Color:
Blue
Power:
3KW
Size:
670*430*820mm
Weight:
260Kg
Key Attributes
Brand Name:
MENSION
Model Number:
DX68
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

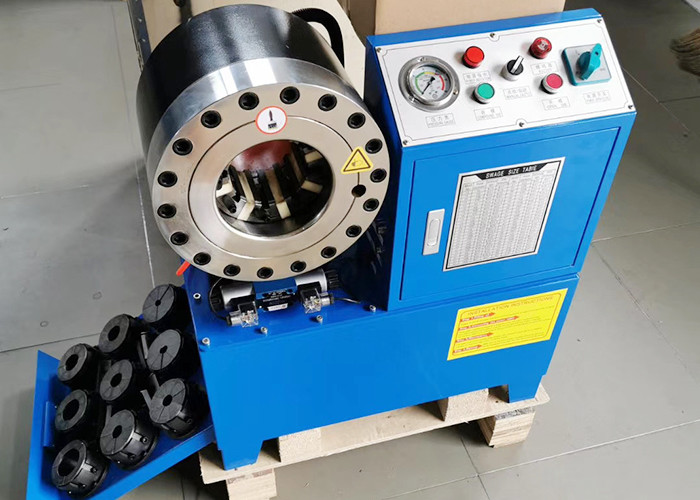

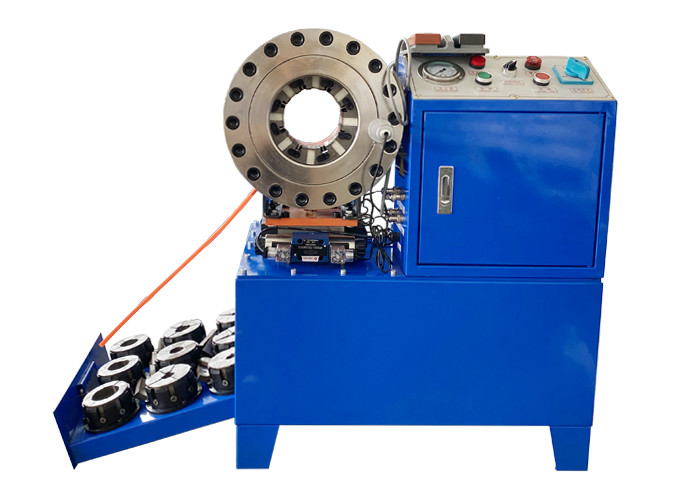

DX68 Hydraulic Hose Crimping Machine
Product Overview
The DX68 hydraulic hose crimping machine is a professional-grade pipe press tool designed for domestic applications. With 500T crimping force and versatile operation modes, this machine offers both automatic and manual operation to suit different production needs. Equipped with wheels for easy mobility and a foot pedal for hands-free operation during crimping.
Key Features
- Forged crimping cylinder with high hardness for durability
- Multifunctional operation panel with dual operation modes
- Integrated pressure gauge for clear system monitoring
- Standard foot pedal for hands-free crimping operation
- Built-in working light for enhanced visibility
Technical Specifications
| Crimping Range | 14 - 87 mm |
| Crimping Force | 500 T |
| Hose Size | 1/4 - 2 inch |
| Maximum Opening | 30 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.05 mm |
| Control System | MS |
| Standard Voltage | 220V / 380V |
| Motor Power | 3 KW |
| Dimensions (L*W*H) | 670 * 430 * 820 mm |
| Weight | 260 KG |
51 Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
* Non-standard die sets. Customized die sets available upon request.
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
Premium Die Sets
10 sets of high-hardness dies (59-63HRC) for crimping hoses from 6mm to 51mm, ensuring precision and durability in every crimp.
Integrated Working Light
The built-in working light provides clear visibility throughout the crimping process, ensuring safe and accurate hose assembly even in low-light environments.
Foot Pedal Operation
Standard foot pedal enables hands-free operation during pressure pipe and fitting swaging, making large-size hose crimping more convenient and efficient.
Custom OEM Services
Customized colors and designs available for all our cable crimping machines. OEM services offered to meet specific branding requirements.
Application Fields
Beyond standard hose assembly, this hydraulic crimping machine is versatile enough for cable pressing, low-pressure water pipes, wire crimping, rope swaging, automotive brake line fabrication, and various other industrial applications.
Additional Notes
Special voltage options available: 110V, 208V, 240V, 415V. Contact us for customized solutions and specific requirements.
