Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E130
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 2inch 4SH
Die Sets 10 Color Blue
Max. Opening 25mm Crimping Force 640T
Product MS-E130 Hose Crimper Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 630*450*560mm Weight 190Kg
High Light

51mm Hydraulic Hose Crimping Machine

,

OEM Hydraulic Hose Crimping Machine

,

51mm Hydraulic Crimping Machine

Leave a Message
Product Description



HIGH PRESSURE HOSE CRIMPER MS-E130


DESCRIPTION



MS-E130 hose crimper is export type hydraulic hose crimping machine with fabricating ability for flexible rubber hose and pipe from 1/4 to 2 inch 4 layers or even 6 layers high pressure cables. It is the ideal choice for big production hose assembly crimping and making.



This hose swaging tool is with standard 10 sets high hardness dies. These standard crimping dies are designed specially for stainless steel braided hose pressing, if you need to press a air conditioner hose or brake hose, you need to contact to get customized die sets with tooth.



ADVANTAGES



1) Small size with big crimping force,

2) Modern oil transfer system with auto heat releasing,

3) Fast crimping and opening speed,

4) High efficient and top accurate crimping with Finn Power Dial,

5) Stable performance even after years of service.



TECHNICAL DATA



Model

MS-130 Excavator Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

130

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

560 (mm)

Weight

190 (KG)

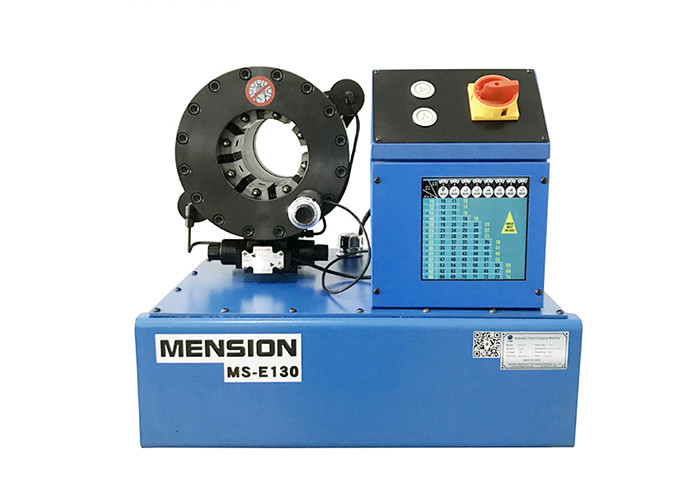

Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper 0

E130 HYDRAULIC HOSE CRIMPER DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

35

8*

8 - 10mm

35

10*

10 - 12mm

35

12*

12 - 14mm

35

14

14 - 16mm

60

16

16 - 20mm

60

20

20 - 22mm

60

22

22 - 26mm

60

26

26 - 30mm

60

30

30 - 38mm

70

38

38 - 46mm

70

46

46 - 54mm

80

54

54 - 64mm

80

64

64 - 69mm

80

69*

69 - 76mm

100



NOTE



1) Customized crimping die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.



OPTIONAL



1) Quick Change Tool;

2) Quick Change Die Set Rack;

3) UC control;

4) Foot Pedal;

5) Pressure Gauge;

6) Normal Rack



► ONE PIECE FORGED HOSE PRESSING CYLINDER



The hose crimper MS-E130 is with high surface hardness hydraulic cylinder, it has the advantage of good anti wear and dust ability, long service time for users to swaging different size hose and fitting with ferrules.

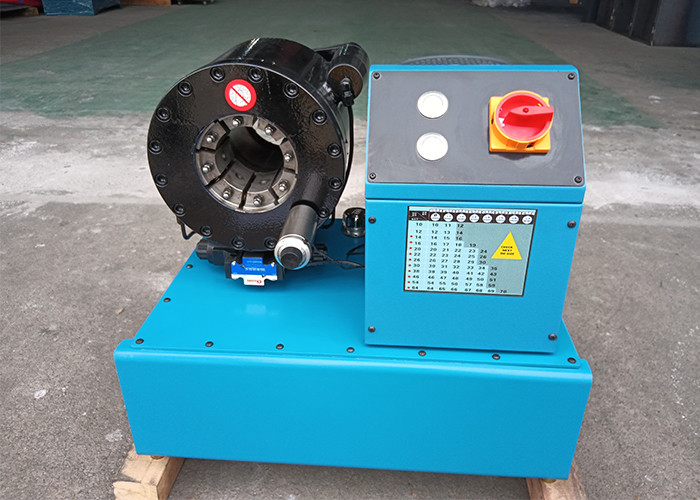

Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper 1



► 10 SETS DIES FOR CRIMPING PRESSURE FLEXIBLE HOSE



The die sets are with suitable hardness from 59HRC-63HRC, capable of crimping hydraulic hose up to 2 inch 4SH, but not easy broken during using, so have a long life. The standard pressing die sets do not have teeth, so if need to press toothy on the ferrule surface, a customized die sets will be needed.



Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper 2



► FINN POWER DIAL



The vernier dial is used for adjust the crimping diameter of the die sets. MS-E130 hose crimper is with high accuracy dial up to 0.01mm, it can work with stable performance, and a finn power dial an ideal choice for work piece which has a accuracy request.



Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper 3



► SAMPLES WITH E130



Crimping machine can be used for quick jointing of material, like hydraulic hose, industrial hoses, pipes,

or cable wire.



Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper 4



Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper 5



► HOW TO USE E130 HYDRAULIC HOSE CRIMPING MACHINE?



When you receive the hose crimping machine, first you need to confirm if the machine voltage corresponding with your voltage.

• Then you can start testing and using the machine.



Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper 6



1) Add hydraulic oil T46 about 50L;

2) Connecting electric, turn on the switch to check if wire connecting is right;

3) Closing and opening the head 10 times to free the air from the head;

4) Choosing proper die sets;

5) Adjust the dial to proper scale;

6) Put assembled hose to the head and do crimping;

7) Test if the diameter  is correct.



Hydraulic Hose Crimping Machine Hydraulic Pipe Repairing Machine Manuli Hose Crimper 7
