150T Portable Hydraulic Hose Crimper
,p16hp Portable Hydraulic Hose Crimper
,Steel Braided Pipe p16hp crimping machine

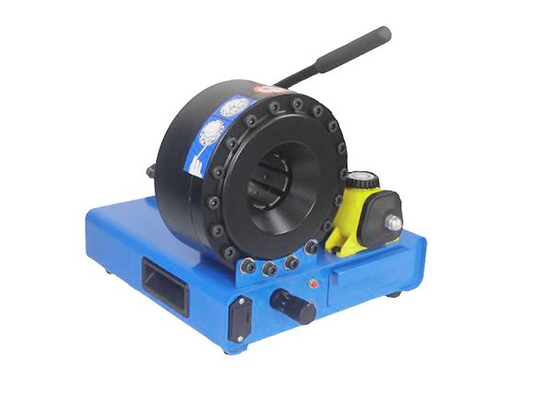

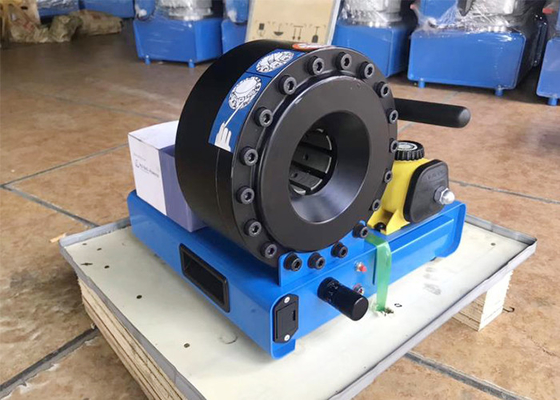

PPRTABLE HOSE CRIMPER P16HP
DESCRIPTION
MS-P16HP is a portable hose crimping machine with light weight. It is designed for field service when repairs must be made on-site. It is simple and striaght-forward in construction, easy to operate and highly reliable.
The light weight allow P16HP to be easily carried to any location. The most popular applications for this portable hose crimping machine is in repair shops and in industrial maintenance units.
ADVANTAGES
► Small size light weight, can be take to any place;
► World famous hydraulic pump,
► High accuracy up to 0.01mm,
► High efficient and top accurate crimping with Finn Power Dial,
► Stable performance even after years of service.
TECHNICAL DATA
| Model | P16HP Hose Crimping Machine |
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage |
Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |
P16 PIPE CRIMPER DIE SETS
| Die No. | Crimping (mm) | Length (mm) |
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0-10.0 | 55 |
| 10* | 10.0-12.0 | 55 |
| 12* | 12.0-14.0 | 55 |
| 14 | 14.0-16.0 | 55 |
| 16 | 16.0-19.0 | 55 |
| 19 | 19.0-23.0 | 55 |
| 23 | 23.0-27.0 | 55 |
| 27 | 27.0-31.0 | 55 |
| 31 | 31.0-35.0 | 65 |
| 35 | 35.0-41.0 | 65 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Max. opening is the stroke between die sets fully closed and fully opened
OPTIONAL
• Quick Change Tool
•Quick Change Die Set Rack;
• UC control;
► FAMOUS HYDRAULIC HAND PUMP
"ENERPAC" hydraulic pump with large flow, stable performance
► DIE SETS
7 sets dies with high hardness HRC59-63
► OEM SERVICE AVAILABLE
Color and die sets of different shape or size can be made according to the need
► APPLICATIONS
Poratble P16HP crimping machine can be used more flexible on machinery repair or movable hose crimping.
-
AReliable quality, easy to use, a great helper for starting a business.
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
