CNC Brake Hose Crimping Machine
,NC130-I Brake Hose Crimping Machine
,NC130-I CNC Hose Crimping Machine

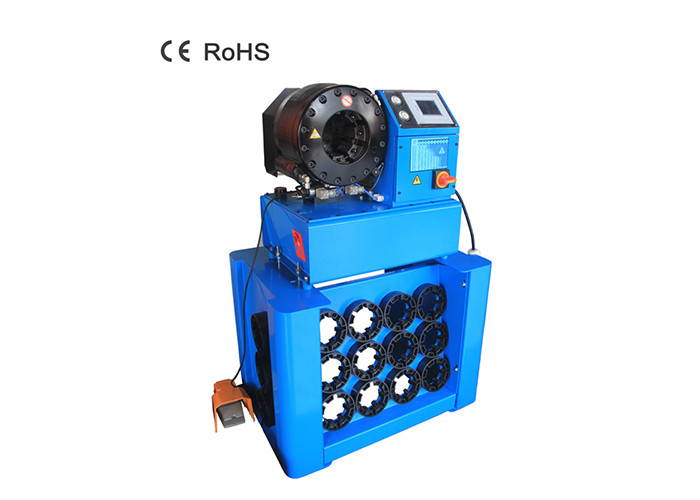

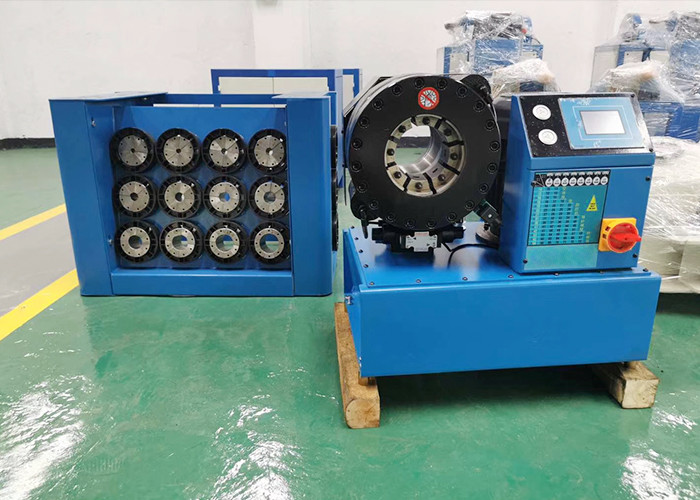

DIGITAL BRAKE HOSE CRIMPING MACHINE MS-NC130-I
DESCRIPTION
MS-NC130-I utilizes the advanced PLC computer numerical control technology, gives the user a more convenient operation system. It is widely used in various machinery repair workshop and hose assembly making factories.
ADVANTAGES
1) Use the famous NACHI valve, high hardness, big flow.
2) Quick change for die sets, makes it more convenient and saves working time.
3) High quality PLC control system, crimping with high accuracy and stability.
TECHNICAL DATA
|
Model |
MS-NC130-I Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
► NEW DESIGN CRIMPING HEAD
New inner structure design, enable high accuracy even for using after years
► CR12MOV DIE SETS
13 die sets hardness 59-63HRC, with quick change tool, productivity improve much.
► HIGH QUALITY MOTOR
Copper wire with aluminium sheel, god heat releasing, longer service life.
► FAMOUS PLC CONTROL
Stable microcomputer control with high accuracy and multifucntion
► OEM SERVICE AVAILABLE
NC130-I can be customized on different color, buttons and die sets
► APPLICATION SHOW
NC130-I is a high configured hose crimping machine, it has the ability of crimping high pressure
stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive
system, air suspension or springs.
♦ How to choose a suitable hose crimping machine?
1) Control system
There are 2 control systems of all hose crimping machine, MS or UC control. MS is mechnical system which using a micrometer to control the crimping diameter and manually control the crimping progress; UC is a PLC control system, using a micro computer control the whole system, including crimping diameter, crimping time, it is a modern device, so price is higher.
2) Crimping size
Hose crimping machine is seperated based on the maximum hose it can crimp, so there is 2 inch crimper, 3 inch crimper, 4 inch crimper, 6 inch crimper, etc.
3) Die changing way
Die sets can be changed manually one by one, or can be changed at one time with a quick change tool.
4) Material or spares quality also influence the price and cafiguration of the hose crimper.
-
