Finn Power P32 Manual Hose Crimper Hydraulic Hose Press Machine Crimping Tool Hose

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E38
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Crimping Force 640T
Max. Opening 31mm Color Blue
Power 4KW Size 630*450*600mm
Weight 200Kg Hydraulic Oil T46
Highlight

MENSION Manual Hose Crimper

,

Manual Hose Crimper E38

,

hydraulic hose crimper E38

Leave a Message
Product Description

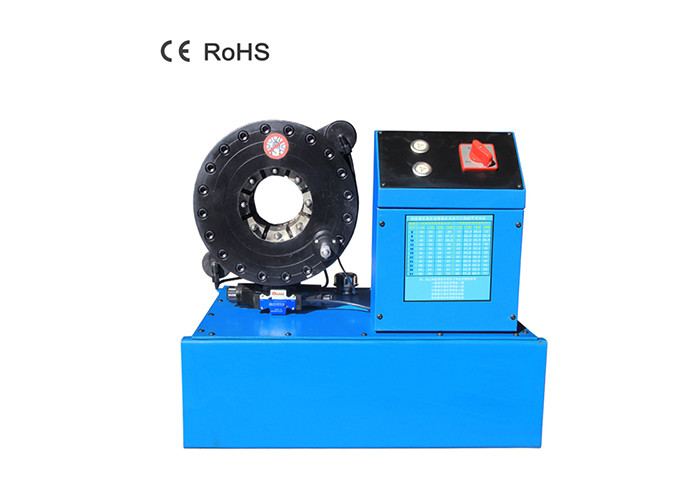

HYDRAULIC MANUAL HOSE CRIMPING MACHINE MS-E38


DESCRIPTION



Crimping is a fast way of jointing hose, pipe or tubes. MS-E38 is a 2 inch hose crimping machine with double conical master die. With a big hydraulic pump and unique structure, the crimper can generate crimping force up to 640T.



MAIN FEATURES



1) Fast opening valve, improve efficiency;

2) Small size, can be placed on any table surface or on the ground;

3) Advanced die sets install technology, more steady;

4) High hardness solenoid valve stem, long life.



TECHNICAL DATA



Model

MS-E38 Manual Hose Crimper

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch) 4SH

Max. Opening

31 (mm)

Die Sets

10

Die Set Type

38

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

4 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)

Hydraulic Oil 50 (L)



Finn Power P32 Manual Hose Crimper Hydraulic Hose Press Machine Crimping Tool Hose 0



38 STANDARD DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

35

8*

8 - 10mm

35

10*

10 - 12mm

35

12*

12 - 14mm

35

14

14 - 16mm

60

16

16 - 20mm

60

20

20 - 22mm

60

22

22 - 26mm

60

26

26 - 30mm

60

30

30 - 38mm

70

38

38 - 46mm

70

46

46 - 54mm

80

54

54 - 64mm

80

64

64 - 69mm

80

69*

69 - 76mm

100



NOTE



1) Customized die sets are available with different size or shape;

2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;

3) Foot pedal is available to make the hands free;

4) * is for non standard die sets



► DOUBLE CONICAL MASTER DIE



Mater die or die base is with conical bevel structure. Accuracy and force are higher than single bevel die base.

Finn Power P32 Manual Hose Crimper Hydraulic Hose Press Machine Crimping Tool Hose 1



► CE CERTIFICATE SOLENOID VALVE



E38 is with high quality solenoid valve, the spool is with high hardness.

Finn Power P32 Manual Hose Crimper Hydraulic Hose Press Machine Crimping Tool Hose 2



► MOLD WITH HIGH HARDNESS



E38 is with 10 molds with hardness of 59-63HRC, service time longer.

Finn Power P32 Manual Hose Crimper Hydraulic Hose Press Machine Crimping Tool Hose 3



► CRIMPING DIAL WITH HIGH ACCURACY



Finn Power P32 Manual Hose Crimper Hydraulic Hose Press Machine Crimping Tool Hose 4



► SAMPLE SHOW



MS-E38 have been widely used in hydraulic high pressure rubber hose assembly crimping, cable and wire rope pressing, tube swaging, car automotive components jointing, etc.

Finn Power P32 Manual Hose Crimper Hydraulic Hose Press Machine Crimping Tool Hose 5



► FACTORY WORKSHOP



Finn Power P32 Manual Hose Crimper Hydraulic Hose Press Machine Crimping Tool Hose 6
