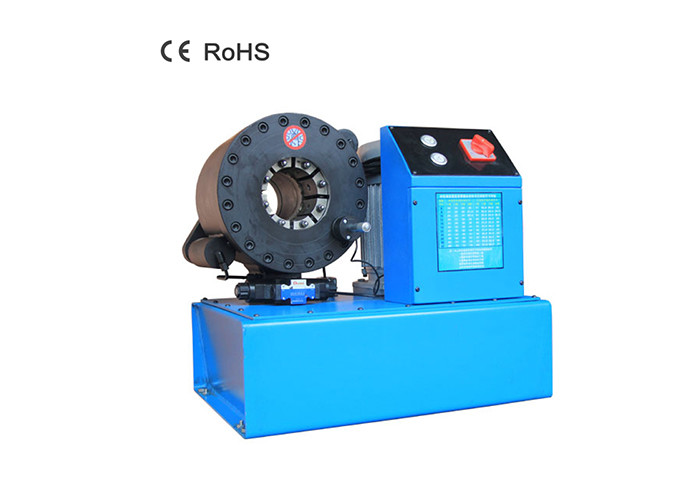

2 INCH RUBBER HOSE CRIMPING MACHINE MS-E38
DESCRIPTION
MS-E38 hose crimper have been updated since 2021 from single taper master die to double taper master die. So the accuracy, crimping force and speed have been increased.
ADVANTAGES
1) Human design die sets from 15mm to 64mm;
2) High quality micrometer for size control;
3) Updated check valve, improve pressure resistance;
4) Copper wire aluminium shell motor, fast heat releasing.
TECHNICAL DATA
|
Model |
MS-E38 Rubber Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) 4SH |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
38 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
380 (V) 50HZ |
|
Motor Power |
4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) |
| Hydraulic Oil | 50 (L) |
38 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 14 mm |
35 |
|
14 |
14 - 16 mm |
60 |
|
16 |
16 - 20 mm |
60 |
|
20 |
20 - 22 mm |
60 |
|
22 |
22 - 26 mm |
60 |
|
26 |
26 - 30 mm |
60 |
|
30 |
30 - 38 mm |
70 |
|
38 |
38 - 46 mm |
70 |
|
46 |
46 - 54 mm |
80 |
|
54 |
54 - 64 mm |
80 |
|
64 |
64 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets
► ADVANCED CYLINDER DESIGN
Introduce world most advanced cylinder producing technology, improve whole machine performance
► OIL INSERT HOLE WITH HIGH DESITY FILTER
Filter filtration between 10-40, can block certain size imputies from entering the hydraulic system
► HIGH QUALIT BUTTON
Copper silver cables for electric system, button can bear press over 10 million times
► SOLENOID VALVE
Good look, high hardness and great anti wear capacity
► SAMPLE SHOW
Crimping machine can be used for high pressure hydraulic stainless steel braided hose, low pressure air or water hose, air suspension, brake hose, wire cable, ropes, stainless steel or iron tubes, etc.
► HUMAN PACKAGE
Using plywood crate for exporting, meet the need of customs in each countries.
-
