Manual Hose Crimping Machine Gates Hose Crimper For Sale Fuel Pipe Crimping Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 127mm | Hose Size | 1/4 - 4inch |
|---|---|---|---|
| Die Sets | 18-27 | Color | Grey And Blue |
| Max. Opening | 80mm | Crimping Force | 980T |
| System Pressure | 31.5Mpa | Control | UC |
| Size | 780*1050*1650mm | Weight | 1520Kg |
| Highlight | Electric Manual Hose Crimping Machine,P180 Manual Hose Crimping Machine,P180 manual hydraulic hose crimper |
||
Product Description

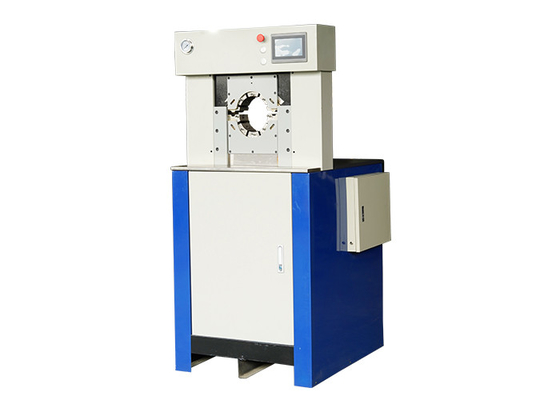

LARGE MANUAL HOSE CRIMPING MACHINE
MS-P180 (4 INCH)
DESCRIPTION
MS-P180 is a super thin hose crimper machine for large hydraulic and industrial hose. It is with a big opening to let a elbow fitting or big size hose go through.
FEATURES
1) Big double use foot pedal, free both of the hands for holding hose
2) Emergency device to protect any harm
3) Hydraulic cylinder with large flow
TECHNICAL DATA
|
Model |
MS-P180 Manual Crimping Machine |
|
Crimping Range |
14 - 127 (mm) |
|
Crimping Force |
980 (T) |
|
Hose Size |
1/4 - 4 (inch) |
|
Max. Opening |
80 (mm) |
|
Die Sets |
18 - 27 |
|
Die Set Type |
P32 P180 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC |
|
Standard Voltage |
380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
780 (mm) |
|
Width |
1050 (mm) |
|
Height |
1650 (mm) |
|
Weight |
1520 (KG) |
P180 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 74mm |
110 |
| 74 | 74 - 80mm | 110 |
| 78 | 78 - 87mm | 110 |
| 84 | 84 - 92mm | 120 |
| 92 | 92 - 100mm | 120 |
| 100 | 100 - 108mm | 120 |
| 108 | 108 - 116mm | 120 |
| 116 | 116 - 126mm | 120 |
| 126 | 126 - 136mm | 120 |
| 136 | 136 - 146mm | 120 |
| 146 | 146 - 156mm | 120 |
| 156 | 156 - 166mm | 120 |
| 166 | 166 - 178mm | 120 |
| 178 | 178 - 190mm | 120 |
| 190 | 190 - 202mm | 120 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;

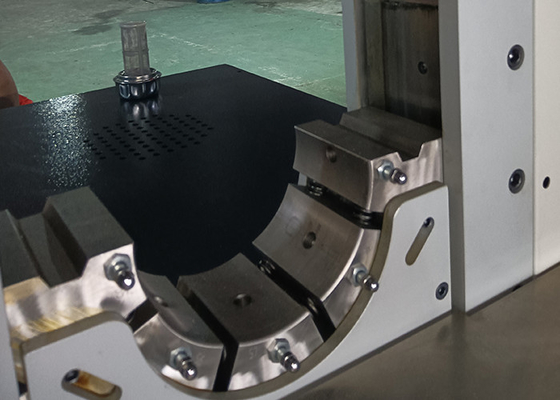

► ADVANCED CRIMPING UNIT
Crimping head with a thin structure, more flexible
► DIE SETS WITH HIGH HARDNESS
Die sets are with high frequency processing, top hardness
► BIG PRODUCTIVITY FAST DELIVERY
We are factory for hose crimping machine, many types can be delivered within 48 hours
► APPLICATIONS
