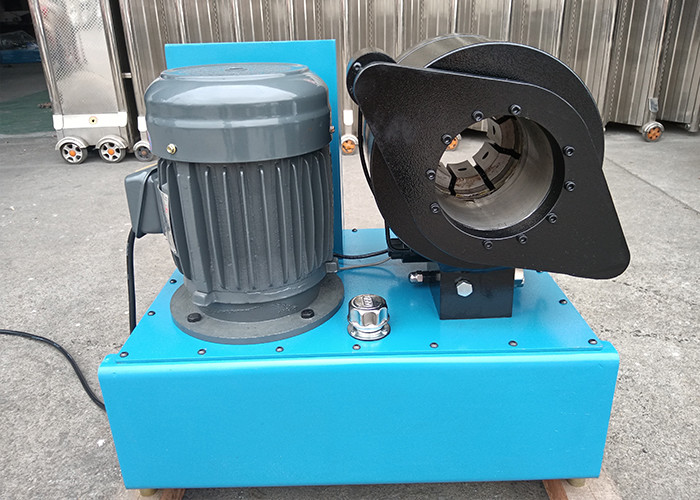

FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20

  • FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20
  • FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20
  • FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E130
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 2inch 4SH
Die Sets 10 Color Blue
Max. Opening 25mm Crimping Force 640T
Application Hydraulic Hose Making Power 3KW
Size 630*450*560mm Weight 190Kg
Highlight

Hydraulic E130 high pressure hose machine

,

E130 high pressure hose machine

,

E130 Hydraulic Hose Machine
Leave a Message
Product Description



HIGH PRESSURE

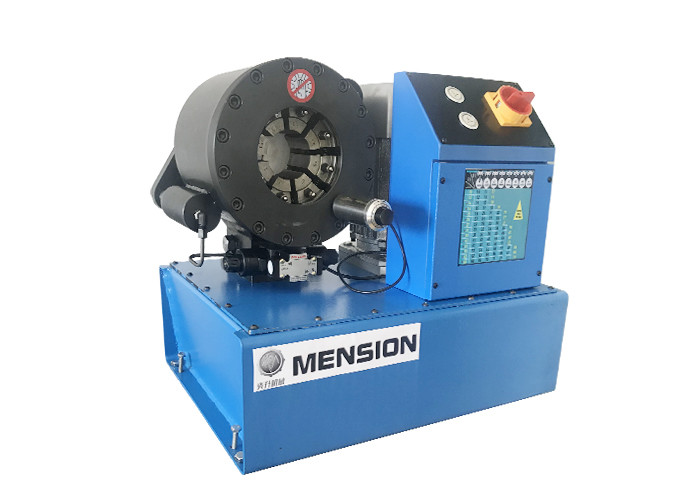

HYDRAULIC HOSE CRIMPING MACHINE MS-E130

DESCRIPTION



MS-E130 is a famous hydraulic hose pressing machine with big crimping range and high accuracy. It is the best choice when crimping is for mass prodcution of hose assembly.



FEATURES



► Compact structure with big crimping force

► Advanced oil transfer system with auto heat releasing

► Quick crimping and opening speed

► High accuracy and top accurate crimping with Finn Power Dial

► Stable performance even after many years of service



TECHNICAL DATA



Model

MS-E130 Hose Crimper Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

130

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW) / 4 (KW)

Length

630 (mm)

Width

450 (mm)

Height

560 (mm)

Net Weight

190 (KG)

FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20 0





130 CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 55

8*

8 - 10mm

 55

10*

10 - 12mm

 55

12*

12 - 14mm

 55

14

14 - 16mm

 55

16

16 - 20mm

 55

20

20 - 22mm

 55

22

22 - 26mm

 55

26

26 - 30mm

 55

30

30 - 38mm

 70

38

38 - 46mm

 70

46

46 - 54mm

 70

54

54 - 64mm

 80

64

64 - 69mm

 80

69*

69 - 76mm

 80



NOTE



• " * " for non standard die sets

• Customized dies of different shape length are available

• Special voltage 110V, 208V, 240V, 415V are availbale



OPTIONAL



1) Quick Change Tool

2) Quick Change Die Set Rack

3) UC control

4) Foot Pedal

5) Pressure Gauge

6) Normal Rack



► FORGED HYDRAULIC CYLINDER



High quality steel, long service time, anti rust surface treatment

FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20 1



► DOUBLE BEVEL MASTER DIE



Mater die use double bevel deaign, with high accuracy and force

FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20 2



► HIGH ACCURACY CRIMPING DIAL



Crimping micrometer with accuracy 0.01mm, high stability, easy maintemance, stable performance.

FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20 3



► APPLICATION FOR E130



Crimping machine is widely used for quick jointing of tube or hose material, like high pressure hydraulic hose, industrial hoses, pipes, or wire and cables.

FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20 4



► HOW TO USE A HYDRAULIC HOSE CRIMPING MACHINE?



When you receive the hose crimping machine, please check the motor voltage is what you want. Then you can add hydraulic oil and start the motor to test the machine. (Note: NEW MACHINE IS NOT WITH HYDRAULIC OIL)

FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20 5



1) Add new hydraulic oil T46 about 50L;

2) Connecting electric, turn on the switch to check if wire connecting is right;

3) Closing and opening the head 10 times to free the air from the crimping head;

4) Choosing proper die sets;

5) Adjust the dial to proper scale;

6) Put assembled hose to the head and do crimping;

7) Test if the diameter is correct.



FT1380 Crimper Manual High Pressure Hose Crimper Hose Pressing Machine P20 6
