Specifications
Highlight:
One Layer Rubber Hose Crimping Machine
,E130 Rubber Hose Crimping Machine
,Stainless Steel Braided Hose Crimping Machine
Crimping Range:
14 - 87mm
Hose Size:
2inch 4SH
Die Sets:
10
Color:
Blue
Max. Opening:
25mm
Crimping Force:
640T
Product Name:
E130 Rubber Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
630*450*1560mm
Weight:
190Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-E130
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

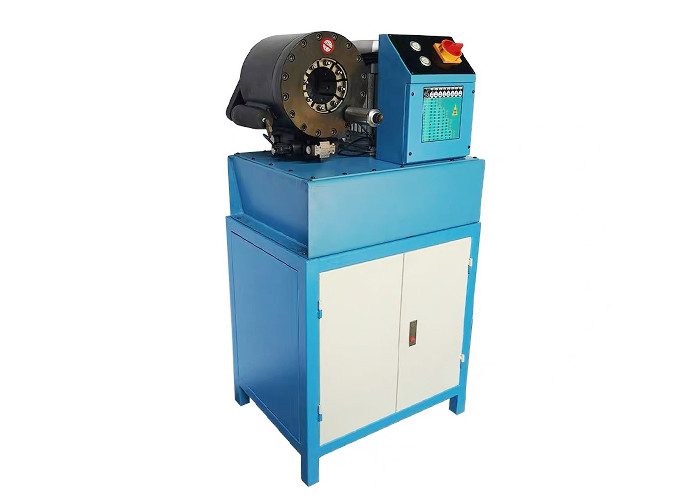

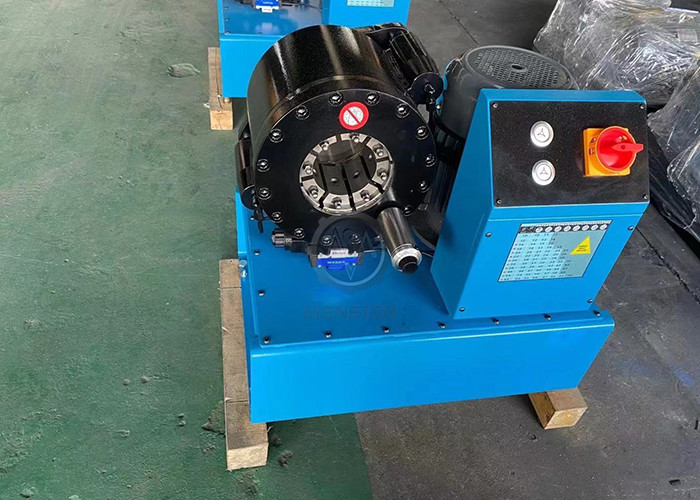

MS-E130 2 Inch Hydraulic Rubber Hose Crimping Machine
The MS-E130 hydraulic rubber hose crimping machine is engineered for precision crimping operations and has gained recognition among customers seeking reliable, high-quality crimping equipment.
Key Advantages
- Compact design for space-efficient operation
- Unique hydraulic oil transfer system for enhanced efficiency
- Rapid closing and opening mechanism for increased productivity
- Comprehensive guide for proper die set selection
- High-capacity hydraulic oil pump with exceptional stability
Technical Specifications
| Model | MS-130 Rubber Hose Crimping Machine |
| Crimping Range | 14 - 87 mm |
| Crimping Force | 640 Tons |
| Hose Size | 1/4 - 2 inch |
| Maximum Opening | 25 mm |
| Die Sets | 10 |
| Die Set Type | 130 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control System | MS |
| Standard Voltage | 220V / 380V |
| Motor Power | 3 KW |
| Length | 630 mm |
| Width | 450 mm |
| Height | 560 mm |
| Weight | 190 KG |
130 Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 14 mm | 35 |
| 14 | 14 - 16 mm | 60 |
| 16 | 16 - 20 mm | 60 |
| 20 | 20 - 22 mm | 60 |
| 22 | 22 - 26 mm | 60 |
| 26 | 26 - 30 mm | 60 |
| 30 | 30 - 38 mm | 70 |
| 38 | 38 - 46 mm | 70 |
| 46 | 46 - 54 mm | 80 |
| 54 | 54 - 64 mm | 80 |
| 64 | 64 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
* Denotes non-standard die sets. Customized die sets are available upon request.
Additional Options
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
- Foot Pedal Operation
- Pressure Gauge
- Standard Rack
Special voltage configurations including 110V, 208V, 240V, and 415V are available.
Premium Construction Features
CR12MOV high-quality mold steel with two-bevel die based design for superior durability and performance.
User-friendly control panel designed for convenient and straightforward operation.
Finn Power electric positioning ruler ensures high-precision crimping accuracy.
