Specifications
Highlight:
2 Inch portable hydraulic crimper
,E130 portable hydraulic crimper
,E130 hydraulic crimper machine
Crimping Range:
14 - 87mm
Hose Size:
2inch 4SH
Die Sets:
10
Color:
Blue
Max. Opening:
25mm
Crimping Force:
640T
Product Name:
Portable Hydraulic Hose Crimper
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
630*450*560mm
Weight:
190Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-E130
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

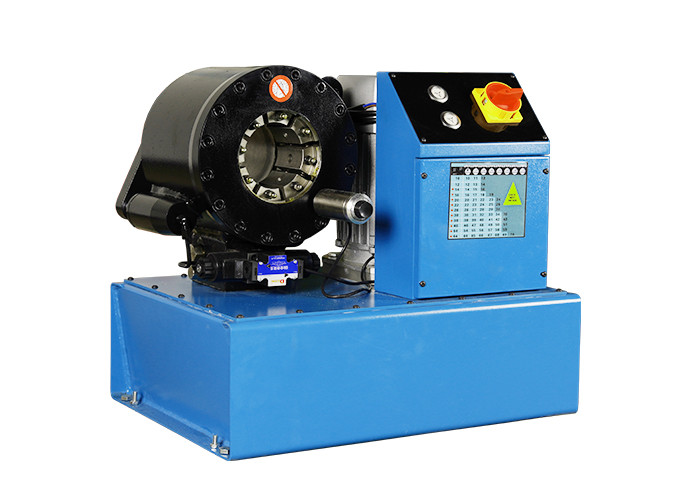

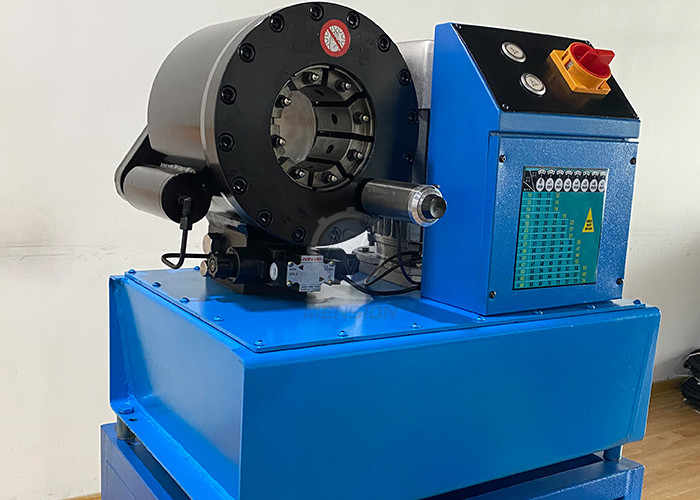

MS-E130 Portable Hydraulic Hose Crimper
Professional portable hydraulic hose crimper designed for high-pressure hydraulic systems and industrial hose applications with exceptional crimping capacity and compact structure.
Product Overview
The MS-E130 portable hydraulic hose crimper is renowned for its substantial crimping capacity and compact design. This tool is suitable for high-pressure hydraulic systems ranging from 1/4 inch to 2 inch pressing and industrial hose applications up to 3 inch ferrule crimping.
Key Advantages
- High quality copper wire aluminum shell motor
- Unique cylinder manufacturing technology
- Double bevel master die construction
- Clear crimping die selection reference sheet
- Crimping dies with exceptional hardness
Technical Specifications
| Model | MS-130 Portable Hydraulic Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 25 (mm) |
| Die Sets | 10 |
| Die Set Type | 130 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 560 (mm) |
| Weight | 190 (KG) |
130 Crimping Machine Die Sets
| Die No. | Crimping (mm) | Length (mm) |
|---|---|---|
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0 - 10.0 | 55 |
| 10* | 10.0 - 12.0 | 55 |
| 12* | 12.0 - 14.0 | 55 |
| 14 | 14.0 - 16.0 | 60 |
| 16 | 16.0 - 20.0 | 60 |
| 20 | 20.0 - 22.0 | 60 |
| 22 | 22.0 - 26.0 | 60 |
| 26 | 26.0 - 30.0 | 60 |
| 30 | 30.0 - 38.0 | 70 |
| 38 | 38.0 - 46.0 | 70 |
| 46 | 46.0 - 54.0 | 80 |
| 54 | 54.0 - 64.0 | 80 |
| 64 | 64.0 - 69.0 | 80 |
| 69* | 69.0 - 76.0 | 90 |
Important Notes
- "*" indicates non-standard mold configurations
- Customized die sets are available upon request
- Special voltage options: 110V, 208V, 240V, 415V
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
- Foot Pedal Operation
- Pressure Gauge
- Standard Rack
Double Conical Master Die Technology
Enhanced force application and precision accuracy through advanced double conical master die design.
High Hardness Crimping Dies
Premium crimping dies with exceptional hardness available in various shapes for diverse applications.
Durable Sealing System
High-quality seals designed for longevity, capable of operating for over 10 years without replacement.
User-Friendly Control Panel
Intuitive operation panel designed for easy handling and efficient workflow.
Crimping Hose Assembly Samples
Professional crimping results demonstrating quality hose assembly capabilities.
Overall Rating
5 star
67%
4 star
33%
3 star
0
2 star
0
1 star
0
All Reviews
-
I really like this tool; it allows me to fabricate hydraulic lines right in the workshop. I did have to wait an extra five days for the custom-made special dies. Overall, I think this crimper offers excellent value for money.
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
