Manual Hose Crimping Machine
,Manual Hose Crimping Machine
,3KW manual hose pipe crimping machine

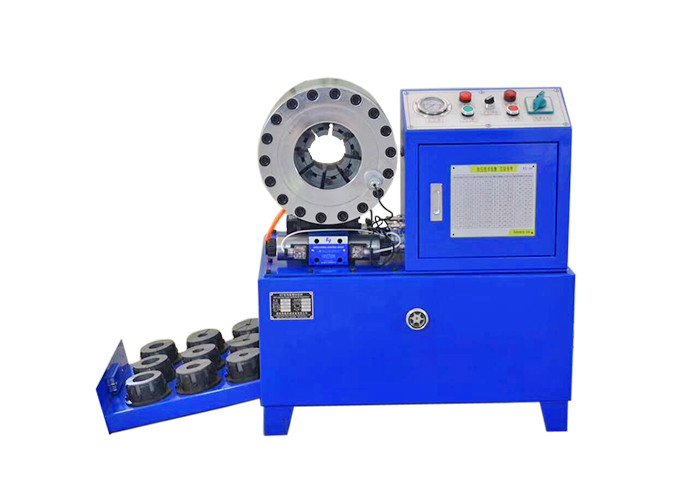

MANUAL HOSE CRIMPING MACHINE
MS-51
DESCRIPTION
MS-51 is famous crimping machine type in recent years, because of the low cost and high productivity. It provide crimping force up to 5000KN, working mode can be changed on the user need between automatic and semi automatic.
MAIN FEATURES
1. Human design signal lamp
2. Sound alert to keep the safety
3. Foot pedal as standard to make hands free
4. Working light to make crimping work more clear
TECHNICAL DATA
|
Model |
MS-51 Manual Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
820 (mm) |
|
Weight |
260 (KG) |
51 CRIMPER MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
► HIGH ACCURACY DIAMETER RULER
High accuracy and stability with long service time, easy install and un-install.

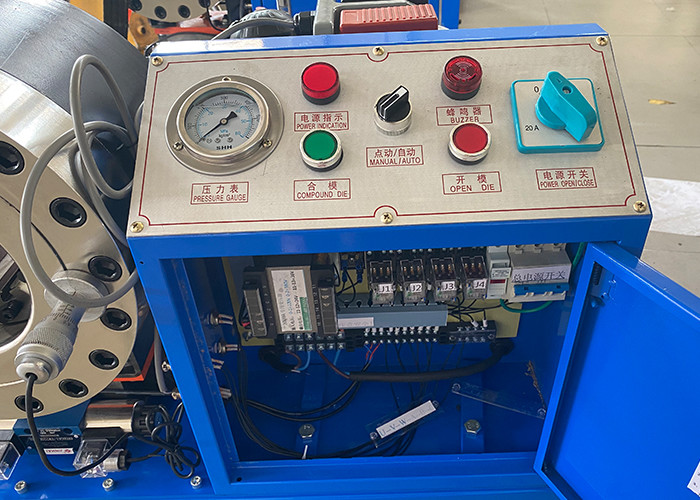

► HUMAN DESIGN PANEL
Make crimping more safe and easy, double laguage showing.
► UNIQUE DIE BASE
Steady die base and die sets connect, sponge with lubricate oil on each piece.
► OEM SERVICE
Customized color and Customized outlook for hose crimping machine. OEM service available for all our machines.
► APPLICATION FIELD
The basic fucntion of a hose crimping machine is for crimping hose assembly, but a hose crimping machine can not only do rubber hose crimping, but can be used for quick jointing of other materials, like cables, low pressure water pipes, wires, ropes, automotive brake lines, etc.
-
