Specifications
Highlight:
MS-51 Used Hose Crimping Machine
,Hydraulic Used Hose Crimping Machine
,MS-51 High Pressure Hose Machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Blue
Max. Opening:
30mm
Crimping Force:
500T
Product Name:
MS-51 Hydraulic Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
670*430*820mm
Weight:
260Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

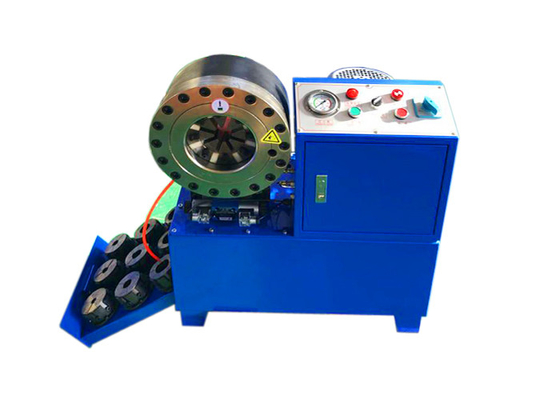

MS-51 Hydraulic Hose Crimping Machine
The MS-51 is an economical hydraulic hose crimping machine designed for domestic use, offering reliable performance for high-pressure hose applications with stainless steel reinforcement.
Key Features
- Simple cylinder design for easy maintenance
- Multifunctional working panel with dual operation modes
- Pressure gauge for clear system pressure monitoring during crimping
- Standard foot pedal switch for hands-free operation
- Integrated working lamp for enhanced visibility
Technical Specifications
| Model | MS-51 Use Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 mm |
| Crimping Force | 500 T |
| Hose Size | 1/4 - 2 inch |
| Max. Opening | 30 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.05 mm |
| Control | MS |
| Standard Voltage | 220 V / 380 V |
| Motor Power | 3 KW |
| Length | 670 mm |
| Width | 430 mm |
| Height | 820 mm |
| Weight | 260 KG |
51 Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
* Denotes non-standard die sets
Additional Information
Customized die sets are available upon request. Special voltage options including 110V, 208V, 240V, and 415V are also available.
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
Domestic Design with Low Cost
High Hardness Crimping Die Sets
Foot Pedal Switch for Flexible Operation
High Precision Micrometer Control
Movable Working Light for Convenience
