Specifications
Highlight:
DX68 hydraulic crimping machine
,51KH hydraulic crimping machine
,51KH high pressure hose machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Blue
Max. Opening:
30mm
Crimping Force:
500T
Product Name:
DX68 Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
670*430*1520mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51KH
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

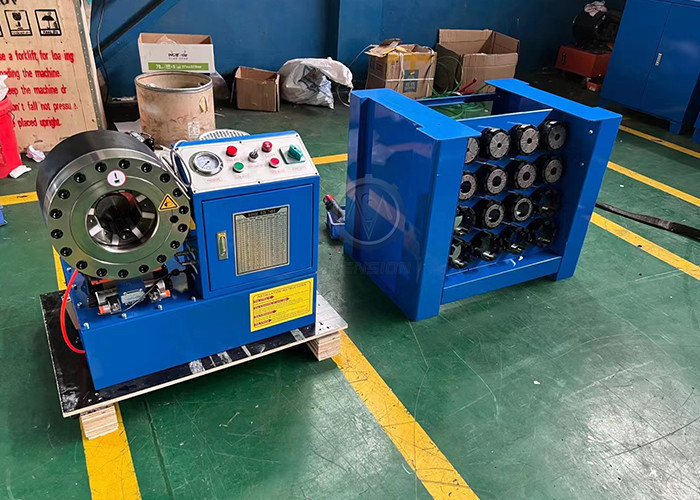

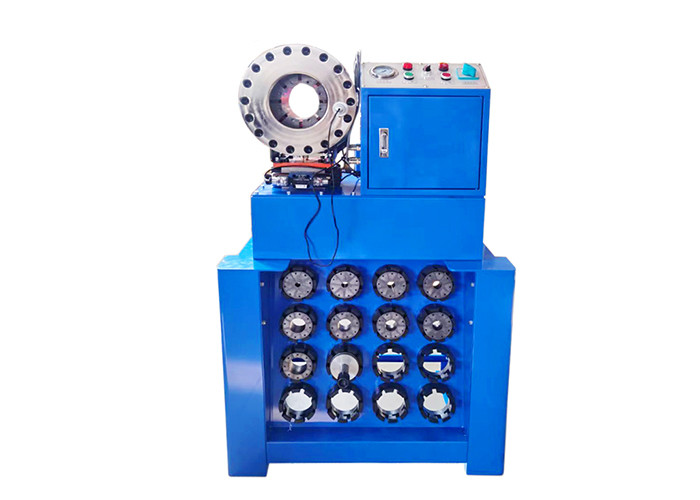

DX68-Plus High Pressure Hydraulic Hose Crimping Machine
MS-51KH Hydraulic Hose Crimping Machine
The MS-51KH is an upgraded model based on the DX68 and 69 series, featuring enhanced crimping force for high-pressure oil hoses and superior precision for small work pieces. The key innovation is the quick die set change technology, allowing complete die set replacement in one operation, significantly boosting productivity compared to traditional machines.
Main Features
- Unique one-piece forged crimping head prevents oil leakage
- Quick die set change system eliminates individual die replacement
- Ergonomic machine stand designed for comfortable operation at human height
- Integrated pressure gauge for clear system pressure monitoring during crimping
- Foot pedal switch enables hands-free operation for handling large hoses
Technical Specifications
| Model | MS-51KH Hose Crimping Machine (DX68-Plus) |
|---|---|
| Crimping Range | 14 - 87 mm |
| Crimping Force | 500 Tons |
| Hose Size | 1/4 - 2 inch |
| Maximum Opening | 30 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.05 mm |
| Control System | MS |
| Standard Voltage | 220V / 380V |
| Motor Power | 3 KW |
| Dimensions (L×W×H) | 670 × 430 × 1520 mm |
| Weight | 310 KG |
51 Crimper Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
Additional Information
* Denotes non-standard die sets
Customized die sets available upon request
Special voltage options: 110V, 208V, 240V, 415V available
Customized die sets available upon request
Special voltage options: 110V, 208V, 240V, 415V available
