Rubber High Pressure Oil Hose Crimping Machine Machinery Repair Workshop

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51KH
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51KH Rubber Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 670*430*1520mm Weight 310Kg
High Light

31.5Mpa Hose Crimping Machine

,

Oil Hose Crimping Machine

,

51KH Pressure Hose Crimper

Leave a Message
Product Description



CHEAP RUBBER HOSE CRIMPING MACHINE MS-51KH


DESCRIPTION



MS-51KH rubber hose crimping machine is famous for its large productivity and multi choice for hose assmbely making. It is the ideal choice for high pressure hose repair workshops. With standard die sets, the machine can crimp oil hose on excavator, loader, and other construction machinery.



MAIN FEATURES



1. Quick die change and die set rack, make crimping more flexible;

2. Crimping can be done with button or foot pedal;

3. Automatic crimping is as standard, to improve the efficiency;

4. Pressure crimping available as there is pressure gauge to show the pressure of system;

5. Tight hose connection, prevent oil leakage.



TECHNICAL DATA



Model

MS-51KH Rubber Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG)

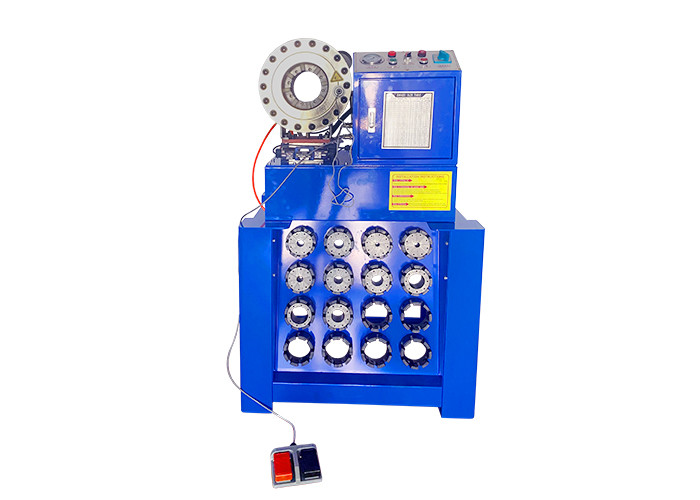

Rubber High Pressure Oil Hose Crimping Machine Machinery Repair Workshop 0

51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8 mm

35

8*

8 - 10 mm

35

10*

10 - 12 mm

35

12*

12 - 15 mm

35

15

15 - 19 mm

60

19

19 - 23 mm

60

23

23 - 26 mm

60

26

26 - 31 mm

60

31

31 - 36 mm

70

36

36 - 41 mm

70

41

41 - 47 mm

70

47

47 - 55 mm

80

55

55 - 63 mm

80

63

63 - 69 mm

80

69*

69 - 76 mm

100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
