Specifications
Highlight:
3KW Air Con Crimping Tool
,Air Con Crimping Tool
,51KH aircon crimping tool
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Blue
Max. Opening:
30mm
Crimping Force:
500T
Product Name:
51KH AC Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
670*430*1520mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51KH
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Automotive Air Conditioning Hose Crimping Tool

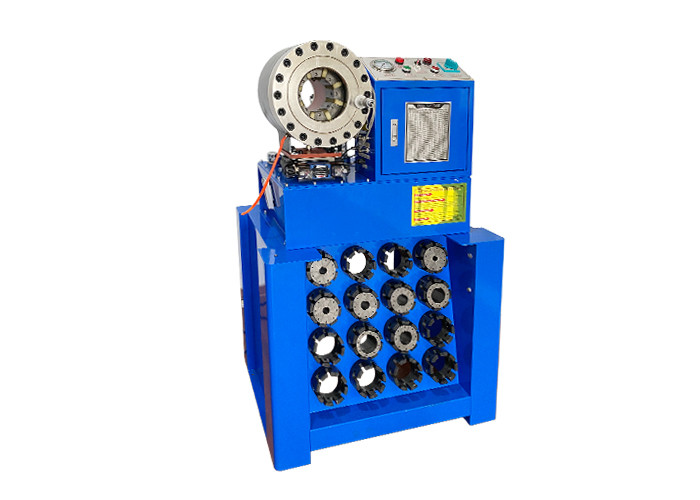

MS-51KH AC Hose Crimping Machine
The MS-51KH AC hose crimping machine is designed for professional hose and tube connection work. This robust crimping tool is suitable for press crimping hydraulic hoses, industrial hoses, composite pipes, flexible metal tubes, teflon hoses, wire ropes, and various other rope and hose fittings.
Main Features
- High precision operation with quality micrometer
- Forged steel machine head for enhanced durability
- User-friendly control panel with simple operation
- Equipped with foot pedal for hands-free convenience
- High-precision solenoid valve with excellent flexibility
Technical Specifications
| Model | MS-51KH AC Hose Crimping Machine |
| Crimping Range | 14 - 87 mm |
| Crimping Force | 500 T |
| Hose Size | 1/4 - 2 inch |
| Maximum Opening | 30 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.05 mm |
| Control System | MS |
| Standard Voltage | 220 V / 380 V |
| Motor Power | 3 KW |
| Length | 670 mm |
| Width | 430 mm |
| Height | 1520 mm |
| Weight | 310 KG |
51 Series Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 15mm | 35 |
| 15 | 15 - 19mm | 60 |
| 19 | 19 - 23mm | 60 |
| 23 | 23 - 26mm | 60 |
| 26 | 26 - 31mm | 60 |
| 31 | 31 - 36mm | 70 |
| 36 | 36 - 41mm | 70 |
| 41 | 41 - 47mm | 70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
Important Notes
- * indicates non-standard die sets
- Customized die sets are available upon request
- Special voltage options available: 110V, 208V, 240V, 415V
