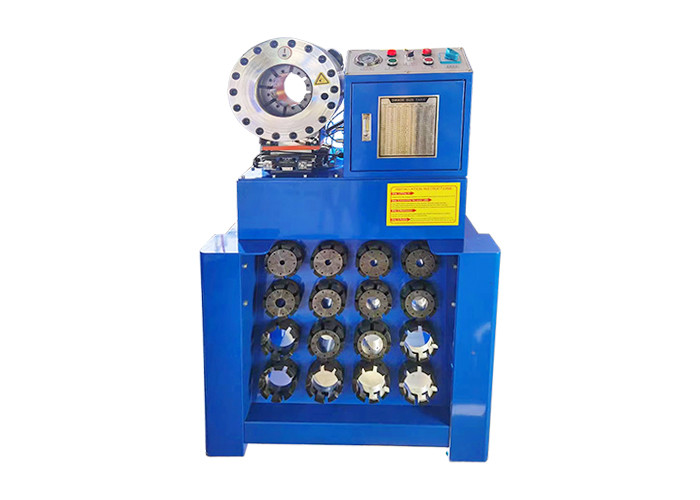

BRAKE HOSE CRIMPING MACHINE MS-51KH
DECRIPTION
MS-51KH is mainly used for processing high pressure rubber hose assembly in the mechanical engineering industry. It can also be used for crimping the two-way bends fitting, especially large bends and irregular shape bends fitting with rubber hose.
This hose crimping machine is with small and compact appearance, big force, low noise and easy to operate. The crimping size can be precise adjusted through a scale.
MAIN FEATURES
1. Efficient crimping with high quality pump;
2. Quick die set change to save the time;
3. Crimping diameter controlled by high precision micrometer;
4. Cost effective with core self design;
5. Pedal switch makes the hands free;
TECHNICAL DATA
|
Model |
MS-51KH Brake Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
1520 (mm) |
|
Weight |
310 (KG) |
51 SERIES CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
¤ * for non standard die sets;
¤ Customized die sets are available;
¤ Special voltage 110V, 208V, 240V, 415V are availbale;
