Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool

  • Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool
  • Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool
  • Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51CG
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51CG Hose Pressing Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 800*640*1300mm Weight 320Kg
Highlight

Big Force hydraulic pipe press machine

,

51CG hydraulic pipe press machine

,

Crimping pipe press machine
Leave a Message
Product Description

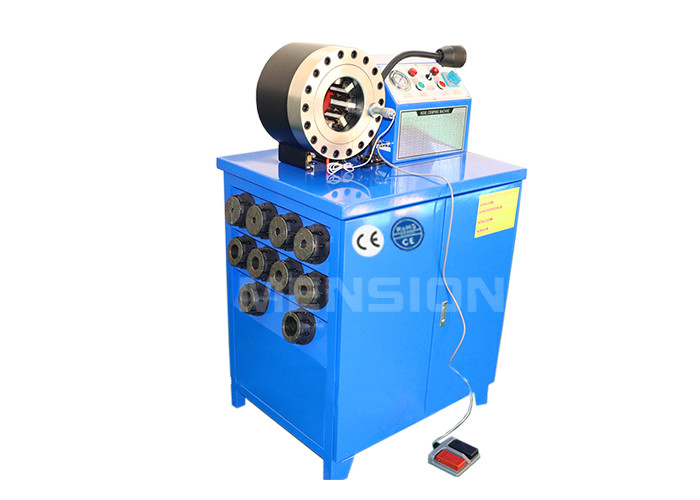

HOSE PRESSING MACHINE 51CG

DESCRIPTION



MS-51CG cable pressing machinery is capable of fabricating hydraulic high pressure oil rubber flexible hose from 1/4 inch to 2 inch (6mm - 51mm), and it is also suitable for industrial low pressure water or air pipe making, metal tube diameter reducing, wire rope connecting and other work piece which need jointing.



MAIN ADVANTAGES



1. Working lamp makes crimping during dark possible

2. Foot pedal switch frees both the hands to improve the efficiency

3. Big flow pistion pump with low noise level

4. Copper wire aluminium shell motor, no heat even after using for long time

5. Simple design, low maintenance cost



TECHNICAL DATA



 Model

 MS-51CG Pressing Machine

 Crimping Range

 14 - 87 (mm)

 Crimping Force

 500 (T)

 Hose Size

 6 - 51 (mm)

 Max. Opening

 30 (mm)

 Die Sets

 10

 Die Set Type

 51

 System Pressure

 31.5 (Mpa)

 Accuracy

 0.05 (mm)

 Control

 Manual, Automatic, Pedal

 Standard Voltage

 220 (V)

 Motor Power

 3 (KW)

 Length

 800 (mm)

 Width

 640 (mm)

 Height

 1300 (mm)

 Weight

 320 (KG)



Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool 0



CRIMPING DIE SETS



Die No. #

Crimping (mm)

 Length (mm)

6*

6.0 - 8.0

 35

8*

8.0 - 10.0

 35

10*

10.0 - 12.0

 35

12*

12.0 - 15.0

 35

15

15.0 - 19.0

 60

19

19.0 - 23.0

 60

23

23.0 - 26.0

 60

26

26.0 - 31.0

 60

31

31.0 - 36.0

 70

36

36.0 - 41.0

 70

41

41.0 - 47.0

 70

47

47.0 - 55.0

 80

55

55.0 - 63.0

 80

63

63.0 - 69.0

 80

69*

69.0 - 76.0

 90



NOTE



• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale



OPTIONAL



• Quick Change Tool

• UC control



CRIMPING MACHINE DETAILS



► Human design machine height, convenient for working



Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool 1



► Foot pedal as alternate for button control, free both of the users' hands



Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool 2



► Freindly installation instructions paste on the machine body for novice



Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool 3



► Antiseismic pressure guage, can show system pressure clear



Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool 4



PRESSURE HOSE ASSEMBLY SAMPLES



Hydraulic Hose Crimper Hose Pipe Pressing Machine Hydraulic Hose Swage Tool 5
