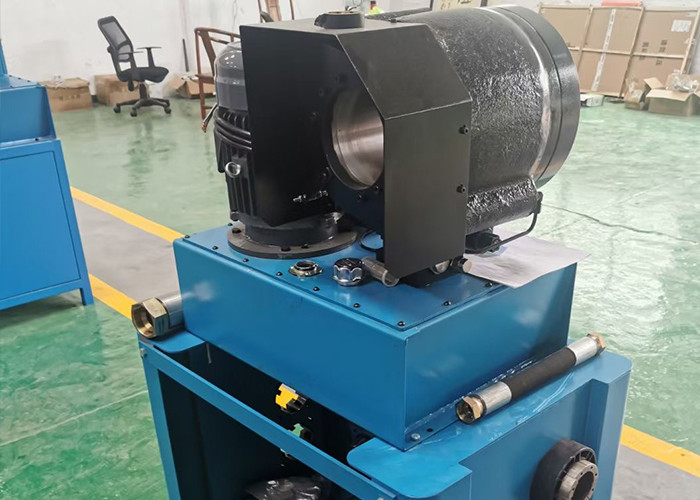

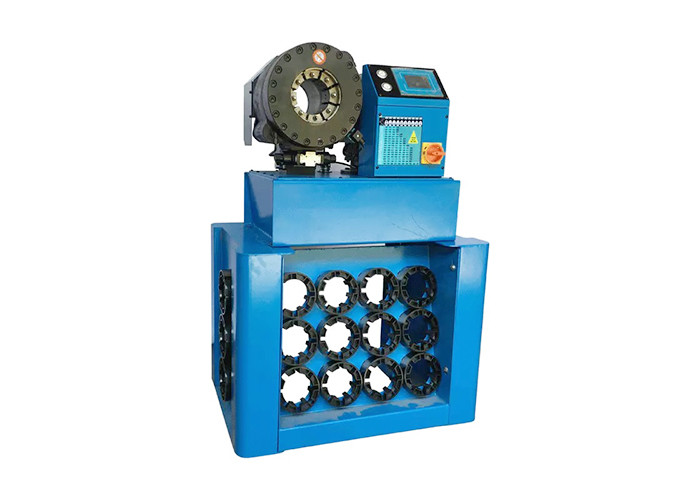

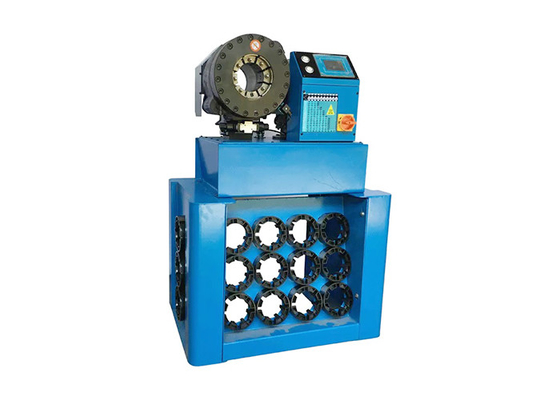

HIGH PRESSURE MANUAL PIPE PRESSING MACHINE MS-NC130-I
DESCRIPTION
MS-NC130-I intelligent hydraulic hose crimper machine is the the ideal choice for big hose assembly production and suitable for crimping wire and cable with big force.
WHY DO YOU CHOOSE IT?
1) High quality UC control system, improve the accuracy and stability
2) Japanese NICHI valves, long service time
3) Quick die change to increase the productivity
TECHNICAL DATA
|
Model |
MS-NC130-I Manual Hose Crimper Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC |
|
Standard Voltage |
380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
P32 STANDARD DIE SETS
|
Die No. |
Crimping Range |
|
6* |
6 - 8mm |
|
8* |
8 - 10mm |
|
10* |
10 - 12mm |
|
12* |
12 - 14mm |
|
14 |
14 - 16mm |
|
16 |
16 - 19mm |
|
19 |
19 - 22mm |
|
22 |
22 - 26mm |
|
26 |
26 - 30mm |
|
30 |
30 - 34mm |
|
34 |
34 - 39mm |
|
39 |
39 - 45mm |
|
45 |
45 - 51mm |
|
51 |
51 - 57mm |
|
57 |
57 - 63mm |
|
63 |
63 - 69mm |
|
69 |
69 - 78mm |
HOSE ASSEMBLY CRIMPING REFERENCE SHEET
A detailed reference sheet to teach the user how to choose die sets with each crimping range
HIGH QUALITY UC CONTROL PANEL
Good micro computer with stable numerical data, long time using with high stability
DOUBLE BEVEL MASTER DIE
Unique two bevel design, large crimping force and power
NACHI VALVE AND ITALY ELECTRIC RULER
Improve the stability of the whole hydraulic system and the electric parts accuracy
APPLICATIONS
NC130-I is a high configured hose crimping machine, it has the ability of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive system, air suspension or springs.
-
CI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
