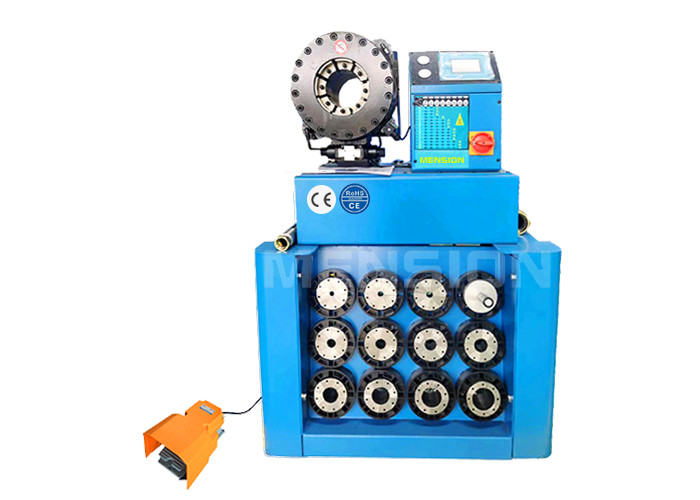

HIGH PRESSURE HOSE CRIMPER MS-NC130-I
DESCRIPTION
MS-NC130-I high pressure hose crimping machine is suitable for hydraulic high pressure rubber hose assembly fabrocating, brake line pipes pressing, air conditioner hose crimping. It is widely used globally in the industries like car automotive system, marine, construction machinery, engineering machinery, etc.
ADVANTAGES
1. Pedal switch control the closing of the die sets, free hands for holding hose
2. Famous PLC control system with stable performance
3. Unique hydraulic cylinder design, low maintenance cost
4. Soft screen panel, easy and convenient
5. Quick mold change to improve the efficiency
TECHNICAL DATA
|
Model |
MS-NC130-I Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC Digital Control |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 HOSE CRIMPER DIE SETS
|
Die No. # |
Crimping (mm) |
Length (mm) |
|
6* |
6.0 - 8.0 |
55 |
|
8* |
8.0 - 10.0 |
55 |
|
10* |
10.0 - 12.0 |
55 |
|
12* |
12.0 - 14.0 |
55 |
|
14 |
14.0 - 16.0 |
55 |
|
16 |
16.0 - 19.0 |
55 |
|
19 |
19.0 - 22.0 |
55 |
|
22 |
22.0 - 26.0 |
70 |
|
26 |
26.0 - 30.0 |
70 |
|
30 |
30.0 - 34.0 |
70 |
|
34 |
34.0 - 39.0 |
75 |
|
39 |
39.0 - 45.0 |
75 |
|
45 |
45.0 - 51.0 |
90 |
|
51 |
51.0 - 57.0 |
90 |
|
57 |
57.0 - 63.0 |
100 |
|
63 |
63.0 - 69.0 |
110 |
|
69 |
69.0 - 74.0 |
110 |
| 74* | 74.0 - 78.0 | 110 |
| 78* | 78.0 - 87.0 | 110 |
NOTICE
• " * " for non standard mold
• Max. opening is the working stroke of cylinder
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V, 440V are availbale
• MS control as optional
DEATILED PICTURES

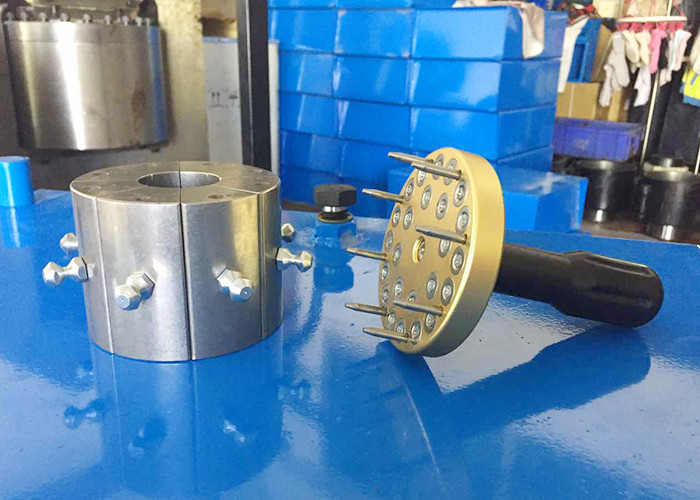

► Advanced design for cylinder and master die, enable high force and synchronous movement
► 13 die sets place in the special rack which can also let the main machine part mounted
► PLC control system with high intelligent level, showing crimping diameter actural time movement
SAMPLES DETAILS
-
AReliable quality, easy to use, a great helper for starting a business.
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
