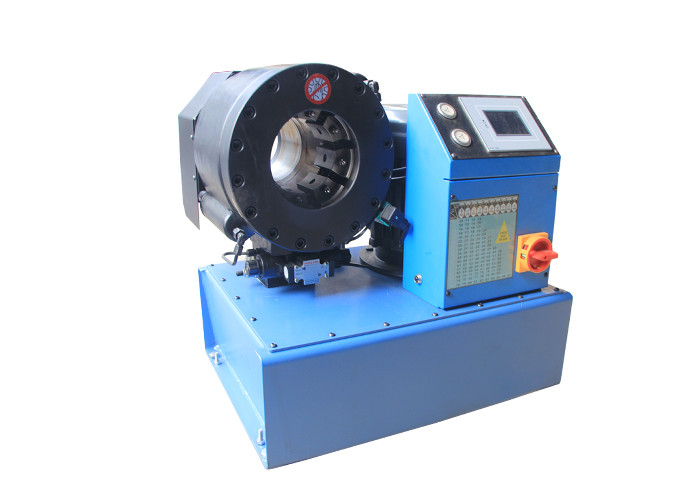

NUMERICAL AC HOSE CRIMPING MACHINE MS-NC130
DESCRIPTION
MS-NC130 ac hose crimper machine is the newest model which has the high configuration. It is the ideal choice for large hose assembly making factory, as it use advanced UC technology to control.
ADVANTAGES
1. UC control technology, improve the productivity;
2. World famous hydraulic cylinder making structure, long using time;
3. Foot pedal make crimping more safe;
4. Special die sets increase the crimping range;
5. Human design height, energy saving.
TECHNICAL DATA
|
Model |
MS-NC130 AC Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
240 (KG) |

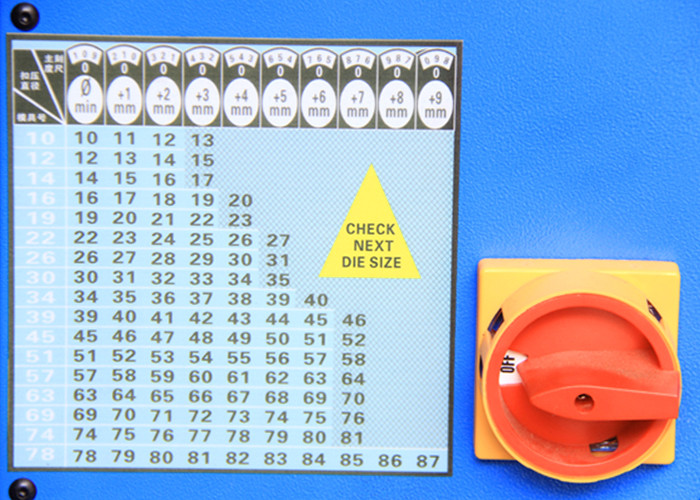

P32 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10 mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16 mm |
55 |
|
16 |
16 - 19 mm |
55 |
|
19 |
19 - 22 mm |
55 |
|
22 |
22 - 26 mm |
70 |
|
26 |
26 - 30 mm |
70 |
|
30 |
30 - 34 mm |
70 |
|
34 |
34 - 39 mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57 mm |
90 |
|
57 |
57 - 63 mm |
100 |
|
63 |
63 - 69 mm |
110 |
|
69 |
69 - 78 mm |
110 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
-
