Specifications
Highlight:
Touch Screen Hose Pressing Machine
,High Stability Hose Pressing Machine
,Automotive hose press machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
NC130 Hose Pressing Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3.75KW
Size:
650*550*650mm
Weight:
240Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-NC130
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

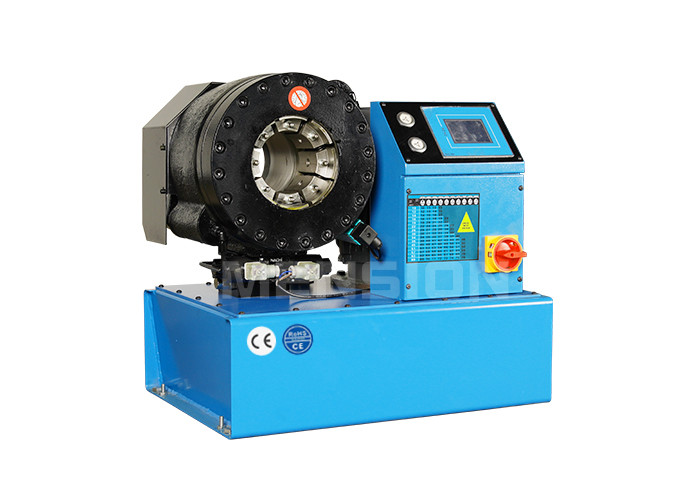

MS-NC130 Hose Pressing Machine
The MS-NC130 hose crimper is engineered for crimping various hydraulic rubber stainless steel wire braided hoses and fittings across multiple sizes and shapes. Featuring substantial working capacity, exceptional stability, and advanced PLC control technology.
Key Advantages
- Large opening for easy hose feeding
- Advanced microcomputer control technology
- High crimping force with premium pump and motor
- Clear crimping data display on soft screen
Technical Specifications
| Model | MS-NC130 Pressing Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | CNC Automatic |
| Standard Voltage | 220 (V) Single Phase |
| Motor Power | 3 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 650 (mm) |
| Weight | 240 (KG) |
P32 Die Sets Specifications
| Die No. # | Crimping (mm) | Length (mm) |
|---|---|---|
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0 - 10.0 | 55 |
| 10* | 10.0 - 12.0 | 55 |
| 12* | 12.0 - 14.0 | 55 |
| 14 | 14.0 - 16.0 | 55 |
| 16 | 16.0 - 19.0 | 55 |
| 19 | 19.0 - 22.0 | 55 |
| 22 | 22.0 - 26.0 | 70 |
| 26 | 26.0 - 30.0 | 70 |
| 30 | 30.0 - 34.0 | 70 |
| 34 | 34.0 - 39.0 | 75 |
| 39 | 39.0 - 45.0 | 75 |
| 45 | 45.0 - 51.0 | 90 |
| 51 | 51.0 - 57.0 | 90 |
| 57 | 57.0 - 63.0 | 100 |
| 63 | 63.0 - 69.0 | 110 |
| 69 | 69.0 - 74.0 | 110 |
| 74* | 74.0 - 78.0 | 110 |
| 78* | 78.0 - 87.0 | 110 |
Important Notes
- "*" indicates non-standard molds
- Customized die sets available upon request
- Special voltages available: 110V, 208V, 240V, 440V
Optional Accessories
- Quick change device for molds
- Mold and machine stand rack
- Foot pedal
- Mechanical positioning device
Premium Spare Parts

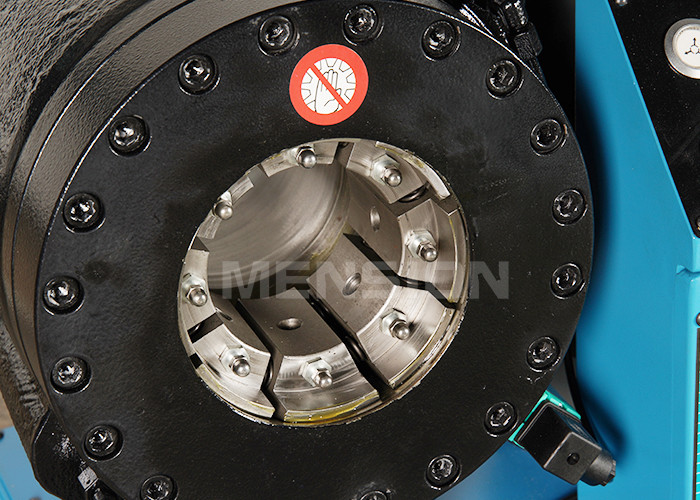

World famous design, double bevel master die cylinder with substantial pressing force
High stability electromagnetic valve with CE certification
High accuracy Italian electrical positioning ruler
Intelligent PLC microcomputer control system with user-friendly operation panel
